AA084XB11 Mitsubishi 8.4 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
Mitsubishi Electric Corporation (hereafter called Mitsubishi) AA084XB11 (Alias: T-55549D084J-LW-A-ACN) is a 8.4 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This Mitsubishi TFT-LCD is a 8.4 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of 20110620 which was released out on 6 20 2011, AA084XB11 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 170.496(W)×127.872(H) mm, outline size of 199.5(W)×149(H) mm, viewing area size of 174.9(W)×132.2(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 370g (Typ.). As a TN, Normally White, Transmissive LCM product, AA084XB11 can provides 1000 cd/m² display brightness 600:1 transimissive contrast ratio, 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 4/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 40% (NTSC). This product adopted 2 strings WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 100K hours, external backlight driver is additionally needed. AA084XB11 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
AA084XB11 |
|
Panel Brand |
Mitsubishi |
|
Panel Size |
8.4" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
1024(RGB)×768, XGA, 152PPI |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
170.496(W)×127.872(H) mm |
|
Bezel Opening |
174.9(W)×132.2(H) mm |
|
Outline Size |
199.5(W)×149(H) mm |
|
Surface |
Antiglare, Hard coating (3H) |
|
Brightness |
1000 cd/m² (Typ.) |
|
Contrast Ratio |
600:1 (Typ.) (TM) |
|
Viewing Angle |
80/80/80/60 (Typ.)(CR≥10) |
|
Display Mode |
TN, Normally White, Transmissive |
|
Best View on |
6 o'clock |
|
Response Time |
4/12 (Typ.)(Tr/Td) |
|
Display Colors |
262K/16.7M 40% NTSC |
|
Lamp Type |
2 strings WLED , 100K hours , Without Driver |
|
Frequency |
60Hz |
|
Touch Screen |
Without |
|
Panel Weight |
370g (Typ.) |
|
Signal Interface |
LVDS (1 ch, 6/8-bit) , 20 pins Connector |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C |

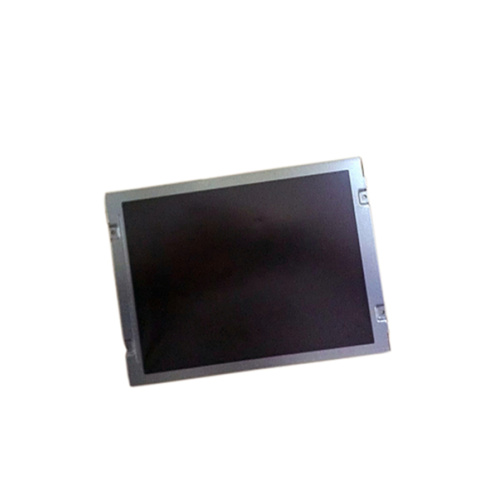

Product Picture:
