AA104XG02 Mitsubishi 10.4 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
Mitsubishi Electric Corporation (hereafter called Mitsubishi) AA104XG02 is a 10.4 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. This Mitsubishi TFT-LCD is a 10.4 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of 20130523 which was released out on 5 23 2013, AA104XG02 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 210.4(W)×157.8(H) mm, outline size of 230(W)×180.2(H)×10(D) mm, viewing area size of 215.4(W)×161.8(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 450g (Typ.). As a SWV, Normally Black, Transmissive LCM product, AA104XG02 can provides 500 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 12/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, With LED Driver. AA104XG02 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model |
AA104XG02 |
|
Brand |
Mitsubishi |
|
Diagonal Size |
10.4 inch |
|
Type |
a-Si TFT-LCD, LCM |
|
Pixel Format |
1024(RGB)×768 [XGA] 123PPI |
|
Configuration |
RGB Vertical Stripe |
|
Active Area |
210.4(H)×157.8(V) mm |
|
Outline Dim. |
230(H)×180.2(V) ×10(D) mm |
|
Bezel Area |
215.4(H)×161.8(V) mm |
|
Treatment |
Antiglare, Hard coating (3H) |
|
Luminance |
500 cd/m² (Typ.) |
|
Contrast Ratio |
1000:1 (Typ.) (TM) |
|
View Direction |
Symmetry |
|
Response Time |
12/12 (Typ.)(Tr/Td) |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
|
Operating Mode |
SWV, Normally Black, Transmissive |
|
Support Color |
262K/16.7M 50% NTSC |
|
Light Source |
WLED , 100K hours , With LED Driver |
|
Weight |
450g (Typ.) |
|
Frame Rate |
60Hz |
|
Touch Panel |
Without |
|
Interface Type |
LVDS (1 ch, 6/8-bit) , 20 pins Connector |
|
Power Supply |
3.3V (Typ.) |
|
Environment |
Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C |

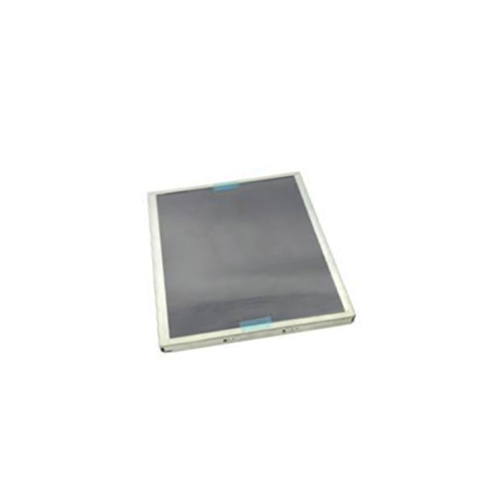

Product Picture:
