AA090TB01 Mitsubishi 9.0 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,SHENZHEN

Product Description

Mitsubishi Electric Corporation (hereafter called Mitsubishi) AA090TB01 is a 9.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. This Mitsubishi TFT-LCD is a 9.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of 20130911 which was released out on 9 11 2013, AA090TB01 supports display 1280(RGB)×768 (WXGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 195.84(W)×117.504(H) mm, outline size of 219(W)×136.2(H)×10(D) mm, viewing area size of 199.4(W)×120.7(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 330g (Typ.). As a SWV, Normally Black, Transmissive LCM product, AA090TB01 can provides 800 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 12/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 2 strings WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, With LED Driver. AA090TB01 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Panel Model	AA090TB01
Panel Brand	Mitsubishi
Panel Size	9.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×768, WXGA, 166PPI
Pixel Format	RGB Vertical Stripe
Display Area	195.84(W)×117.504(H) mm
Bezel Opening	199.4(W)×120.7(H) mm
Outline Size	219(W)×136.2(H) ×10(D) mm
Surface	Antiglare, Hard coating (3H)
Brightness	800 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Display Mode	SWV, Normally Black, Transmissive
Best View on	Symmetry
Response Time	12/12 (Typ.)(Tr/Td)
Display Colors	262K/16.7M 50% NTSC
Lamp Type	2 strings WLED , 100K hours , With LED Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	330g (Typ.)
Signal Interface	LVDS (1 ch, 6/8-bit) , 20 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C

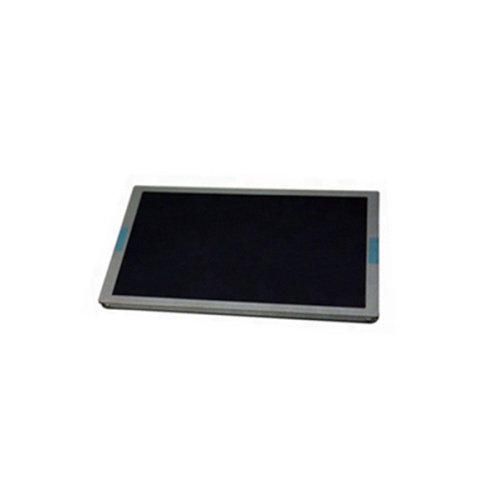

Product Picture:

AA090TB01
