AA150XT01 Mitsubishi 15.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
AA150XT01 (Alias: T-55534D150J-LW-A-AAN) is a 15.0" diagonal a-Si TFT-LCD display panel product from Mitsubishi Electric Corporation (hereafter called Mitsubishi), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -20 ~ 80°C.This Mitsubishi TFT-LCD is a 15.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. AA150XT01 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 304.128(W)×228.096(H) mm, outline size of 326(W)×255(H)×17.1(D) mm, viewing area size of 308.1(W)×232.1(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 1.27Kgs (Typ.). As a TN, Normally White, Transmissive LCM product, AA150XT01 can provides 800 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 6/19 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 7S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 100K hours, external backlight driver is additionally needed. AA150XT01 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model Name |
AA150XT01 |
|
Manufacturer |
Mitsubishi |
|
Screen Size |
15.0 inch |
|
Screen Type |
LCM, a-Si TFT-LCD |
|
Pixel Number |
1024(RGB)×768 (XGA) 85PPI |
|
Arrangement |
RGB Vertical Stripe |
|
Active Area(mm) |
304.128 × 228.096 (H×V) |
|
Outline(mm) |
326 × 255 × 17.1 (H×V×D) |
|
Bezel Area(mm) |
308.1 × 232.1 (H×V) |
|
Treatment |
Antiglare, Hard coating (3H) |
|
Luminance |
800 cd/m² (Typ.) |
|
Contrast Ratio |
800 : 1 (Typ.) (TM) |
|
Viewing Angle |
80/80/60/80 (Typ.)(CR≥10) |
|
Response |
6/19 (Typ.)(Tr/Td) ms |
|
Good View at |
6 o'clock |
|
Work Mode |
TN, Normally White, Transmissive |
|
Color Depth |
262K/16.7M 50% NTSC |
|
Backlight |
7S4P WLED , 100K hours , No Driver |
|
Mass |
1.27Kgs (Typ.) |
|
Refresh Rate |
60Hz |
|
Touchscreen |
Without |
|
Signal Type |
LVDS (1 ch, 6/8-bit) , Connector 20 pins |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Storage Temp.: -20 ~ 80 °C Operating Temp.: -20 ~ 70 °C |

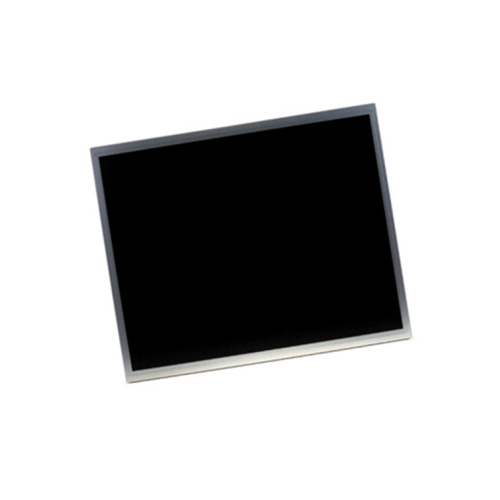

Product Picture:
