V500DJ6-D03 Innolux 50 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Innolux Corporation (hereafter called Innolux) V500DJ6-D03 is a 50 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C .This Innolux TFT-LCD is a 50.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. V500DJ6-D03 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1095.84(W)×616.41(H) mm, outline size of 1120.98(W)×646.9(H) mm, viewing area size of 1098.84(W)×620.41(H) mm, with surface treament of Antiglare (Haze 1%), Hard coating (3H), net weight of 7.30±0.37Kgs. As a Super MVA, Normally Black, Transmissive LCM product, V500DJ6-D03 can provides 300 cd/m² display brightness 5000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥20) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 9.5 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Direct light type and have a working life time of 30K hours, external backlight driver is additionally needed. V500DJ6-D03 utilizes V-by-One 8 lane as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
Panel Model
V500DJ6-D03
Panel Brand
Innolux
Panel Size
50"
Resolution
3840(RGB)×2160 , UHD
Display Area
1095.84(W)×616.41(H) mm
Outline Size
1120.98(W)×646.9(H) mm
Brightness
300 cd/m² (Typ.)
Viewing Angle
88/88/88/88 (Typ.)(CR≥20)
Best View on
Symmetry
Display Colors
1.07B 72% NTSC
Frequency
60Hz
Weight
7.30±0.37Kgs
Panel Type
a-Si TFT-LCD , LCM
Pixel Format
RGB Vertical Stripe
Bezel Opening
1098.84(W)×620.41(H) mm
Surface
Antiglare (Haze 1%), Hard coating (3H)
Contrast Ratio
5000:1 (Typ.) (TM)
Display Mode
Super MVA, Normally Black, Transmissive
Response Time
9.5 (Typ.)(G to G)
Lamp Type
WLED , 30K hours , Without Driver
Touch Screen
Without
Signal Interface
V-by-One 8 lane , 51 pins Connector
Input Voltage
12.0V (Typ.)
Environment
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

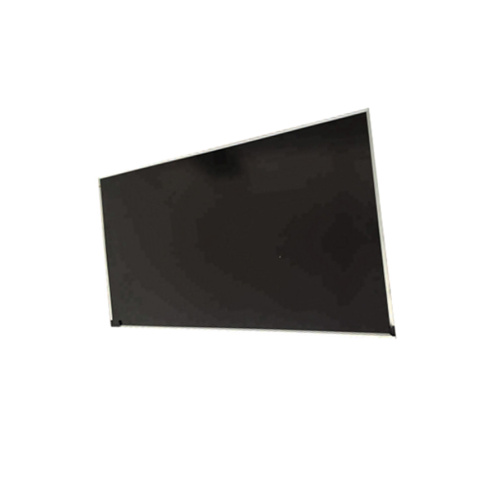

Product Picture:
