M280HKJ-L50 Rev.C3 Innolux 28.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
M280HKJ-L50 Rev.C3 is a 28.0 inch diagonal a-Si TFT-LCD display screen product from Innolux, with a built-in WLED backlight, without backlight driver, without touch screen. This Innolux TFT-LCD is a 28.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Ver3.0 which was released out on 10 12 2015, M280HKJ-L50 Rev.C3 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 620.928(W)×341.28(H) mm, outline size of 648.9(W)×396.4(H)×15.3(D) mm, viewing area size of 626.9(W)×347.3(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 2.73/2.87Kgs (Typ./Max.). As a MVA, Normally Black, Transmissive LCM product, M280HKJ-L50 Rev.C3 can provides 300 cd/m² display brightness 3000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 20/5 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 98% (NTSC). This product adopted 4 strings WLED as it's backlight systerm which was placed as Edge light type (Left side) and have a working life time of 40K hours, external backlight driver is additionally needed. M280HKJ-L50 Rev.C3 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
Model Name
M280HKJ-L50 Rev.C3
Manufacturer
Innolux
Screen Size
28.0 inch
Screen Type
LCM , a-Si TFT-LCD
Pixel Number
1920(RGB)×1080 (FHD)
Arrangement
RGB Vertical Stripe
Active Area(mm)
620.928 × 341.28 (H×V)
Outline(mm)
648.9 × 396.4 × 15.3 (H×V×D)
Bezel Area(mm)
626.9 × 347.3 (H×V)
Treatment
Antiglare (Haze 25%), Hard coating (3H)
Luminance
300 cd/m² (Typ.)
Contrast Ratio
3000 : 1 (Typ.) (TM)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Response
20/5 (Typ.)(Tr/Td) ms
Good View at
Symmetry
Work Mode
MVA, Normally Black, Transmissive
Color Depth
16.7M 98% NTSC
Backlight
4 strings WLED , 40K hours , No Driver
Mass
2.73/2.87Kgs (Typ./Max.)
Refresh Rate
60Hz
Touchscreen
Without
Signal Type
LVDS (2 ch, 8-bit) , 30 pins Connector
Voltage Supply
5.0V (Typ.)
Max. Ratings
Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

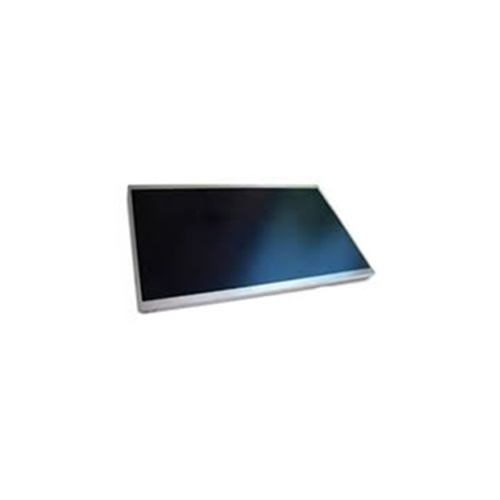

Product Picture:
