M270KCJ-K7B Innolux 27.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Innolux Corporation (hereafter called Innolux) M270KCJ-K7B is a 27.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen.This Innolux TFT-LCD is a 27.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Ver.B1_Ver1.0 which was released out on 9 15 2017, M270KCJ-K7B supports display 2560(RGB)×1440 (Quad-HD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 596.736(W)×335.664(H) mm, outline size of 608.8(W)×355.13(H)×13.8(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 2.58/2.87/3.01Kgs (Min./Typ./Max.). As a AAS, Normally Black, Transmissive LCM product, M270KCJ-K7B can provides 350 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8/7 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 10-bit gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 95% (DCI-P3). This product adopted 4 strings WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 40K hours, external backlight driver is additionally needed. M270KCJ-K7B utilizes V-by-One 8 lane as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0V (Typ.). It's typical vertical frame rate (Fv) is 165Hz.
We are able to offer AD board for this display to support VGA video input
|
Model |
M270KCJ-K7B |
|
Brand |
Innolux |
|
Diagonal Size |
27.0 inch |
|
Type |
a-Si TFT-LCD, LCM |
|
Pixel Format |
2560(RGB)×1440 [Quad-HD] |
|
Configuration |
RGB Vertical Stripe |
|
Active Area |
596.736(H)×335.664(V) mm |
|
Outline Dim. |
608.8(H)×355.13(V) ×13.8(D) mm |
|
Treatment |
Antiglare (Haze 25%), Hard coating (3H) |
|
Luminance |
350 cd/m² (Typ.) |
|
Contrast Ratio |
1000:1 (Typ.) (TM) |
|
View Direction |
Symmetry |
|
Response Time |
8/7 (Typ.)(Tr/Td) |
|
Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) |
|
Operating Mode |
AAS, Normally Black, Transmissive |
|
Support Color |
1.07B 95% DCI-P3 |
|
Light Source |
WLED [4 strings] , 40K hours , W/O Driver |
|
Weight |
2.58/2.87/3.01Kgs (Min./Typ./Max.) |
|
Frame Rate |
165Hz |
|
Touch Panel |
Without |
|
Interface Type |
V-by-One 8 lane , 51 pins Connector |
|
Power Supply |
12.0V (Typ.) |
|
Environment |
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |

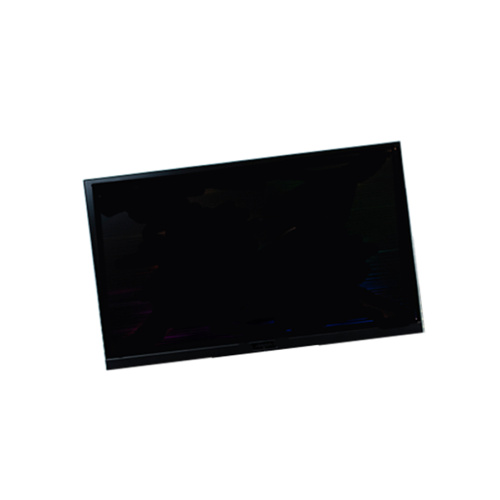

Product Picture:
