M270KCJ-L5B Rev.A1 Innolux 27.0 inch TFT-LCD

M270KCJ-L5B Rev.A1 is a 27.0" diagonal a-Si TFT-LCD display panel product from Innolux Corporation (hereafter called Innolux), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . This Innolux TFT-LCD is a 27.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. M270KCJ-L5B Rev.A1 supports display 2560(RGB)×1440 (Quad-HD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 596.736(W)×335.664(H) mm, outline size of 608.8(W)×355.13(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H). As a AAS, Normally Black, Transmissive LCM product, M270KCJ-L5B Rev.A1 can provides 350 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8/7 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 94% (DCI-P3). This product adopted 4 strings WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 40K hours, external backlight driver is additionally needed. M270KCJ-L5B Rev.A1 utilizes LVDS (4 ch, 8-bit) as it's signal inputting systerm, which connected by 92 pins Connector with power supply voltage of 10.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input

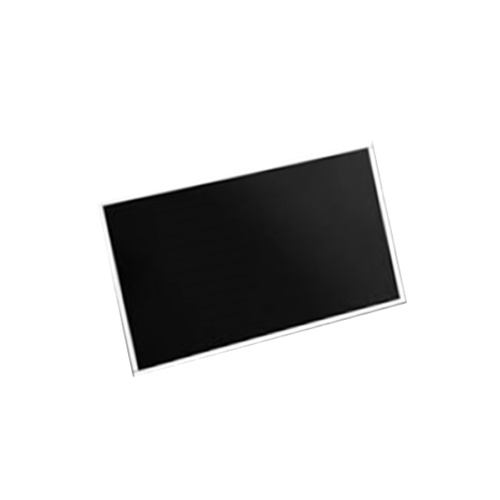

Product Picture:
