G260JJE-L07 Innolux 25.5 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Innolux Corporation (hereafter called Innolux) G260JJE-L07 is a 25.5 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. This Innolux TFT-LCD is a 25.5 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Ver2.0 which was released out on 12 17 2013, G260JJE-L07 supports display 1920(RGB)×1200 (WUXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 550.08(W)×343.8(H) mm, outline size of 582(W)×375.6(H)×30.6(D) mm, viewing area size of 554.1(W)×347.8(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 3.65/3.85Kgs (Typ./Max.). As a Super MVA, Normally Black, Transmissive LCM product, G260JJE-L07 can provides 350 cd/m² display brightness 1500:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 15/5 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Direct light type and have a working life time of 50K hours, With LED Driver. G260JJE-L07 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
Model
G260JJE-L07
Brand
Innolux
Diagonal Size
25.5 inch
Type
a-Si TFT-LCD, LCM
Pixel Format
1920(RGB)×1200 [WUXGA]
Configuration
RGB Vertical Stripe
Active Area
550.08(H)×343.8(V) mm
Outline Dim.
582(H)×375.6(V) ×30.6(D) mm
Bezel Area
554.1(H)×347.8(V) mm
Treatment
Antiglare, Hard coating (3H)
Luminance
350 cd/m² (Typ.)
Contrast Ratio
1500:1 (Typ.) (TM)
View Direction
Symmetry
Response Time
15/5 (Typ.)(Tr/Td)
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Operating Mode
Super MVA, Normally Black, Transmissive
Support Color
16.7M 72% NTSC
Light Source
WLED , 50K hours , With LED Driver
Weight
3.65/3.85Kgs (Typ./Max.)
Frame Rate
60Hz
Touch Panel
Without
Interface Type
LVDS (2 ch, 8-bit) , 30 pins Connector
Power Supply
5.0V (Typ.)
Environment
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

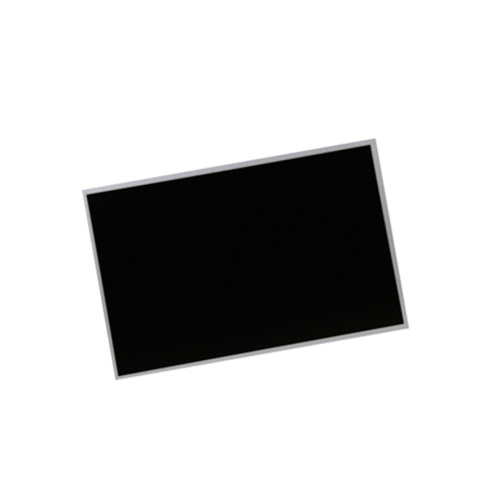

Product Picture:
