M238HCA-L3B Innolux 23.8 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Innolux Corporation (hereafter called Innolux) M238HCA-L3B is a 23.8 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen.This Innolux TFT-LCD is a 23.8 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Rev.C1_Ver2.0 which was released out on 2 6 2017, M238HCA-L3B supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 527.04(W)×296.46(H) mm, outline size of 535(W)×313(H)×13.2(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 2.04/2.27/2.38Kgs (Min./Typ./Max.). As a AAS, Normally Black, Transmissive LCM product, M238HCA-L3B can provides 250 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8/7 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 40K hours, external backlight driver is additionally needed. M238HCA-L3B utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
Model
M238HCA-L3B
Brand
Innolux
Diagonal Size
23.8 inch
Type
a-Si TFT-LCD, LCM
Pixel Format
1920(RGB)×1080 [FHD]
Configuration
RGB Vertical Stripe
Active Area
527.04(H)×296.46(V) mm
Outline Dim.
535(H)×313(V) ×13.2(D) mm
Treatment
Antiglare (Haze 25%), Hard coating (3H)
Luminance
250 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (TM)
View Direction
Symmetry
Response Time
8/7 (Typ.)(Tr/Td)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Operating Mode
AAS, Normally Black, Transmissive
Support Color
16.7M 72% NTSC
Light Source
WLED , 40K hours , W/O Driver
Weight
2.04/2.27/2.38Kgs (Min./Typ./Max.)
Frame Rate
60Hz
Touch Panel
Without
Interface Type
LVDS (2 ch, 8-bit) , 30 pins Connector
Power Supply
5.0V (Typ.)
Environment
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

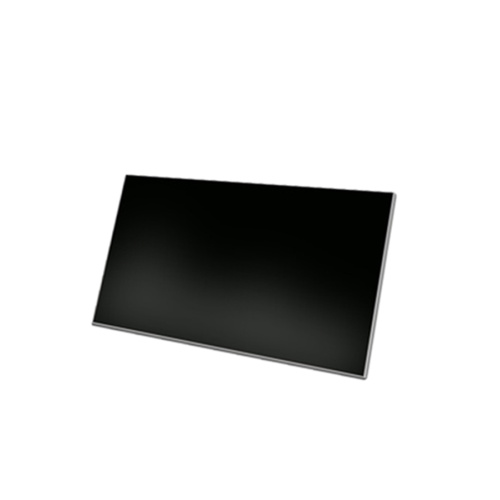

Product Picture:
