V236BJ1-LE2 Rev.P3 is a 23.6 inch diagonal a-Si TFT-LCD display screen product from Innolux, with a built-in WLED backlight, without backlight driver, without touch screen. This Innolux TFT-LCD is a 23.6 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Ver1.0 which was released out on 7 9 2015, V236BJ1-LE2 Rev.P3 supports display 1366(RGB)×768 (WXGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 521.471(W)×293.184(H) mm, outline size of 544.8(W)×320.5(H)×11.8(D) mm, viewing area size of 525.22(W)×297.22(H) mm, with surface treament of Antiglare (Haze 3.5%), net weight of 2.15±0.09Kgs. As a AAS, Normally Black, Transmissive LCM product, V236BJ1-LE2 Rev.P3 can provides 250 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8.5 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Right side) and have a working life time of 30K hours, external backlight driver is additionally needed. V236BJ1-LE2 Rev.P3 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 12.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input


Model

V236BJ1-LE2 Rev.P3

Brand

Innolux

Diagonal Size

23.6 inch

Type

a-Si TFT-LCD, LCM

Pixel Format

1366(RGB)×768   [WXGA]

Configuration

RGB Vertical Stripe

Active Area

521.471(H)×293.184(V) mm

Outline Dim.

544.8(H)×320.5(V) ×11.8(D) mm

Bezel Area

525.22(H)×297.22(V) mm

Treatment

Antiglare (Haze 3.5%)

Luminance

250 cd/m² (Typ.)

Contrast Ratio

1000:1 (Typ.) (TM)

View Direction

Symmetry

Response Time

8.5 (Typ.)(G to G)

Viewing Angle

89/89/89/89 (Typ.)(CR≥10)

Operating Mode

AAS, Normally Black, Transmissive

Support Color

16.7M   72% NTSC

Light Source

WLED , 30K hours , W/O Driver

Weight

2.15±0.09Kgs

Frame Rate

60Hz

Touch Panel

Without

Interface Type

  LVDS (1 ch, 8-bit) , 30 pins Connector

Power Supply

12.0V (Typ.)

Environment

Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C


Product Picture:

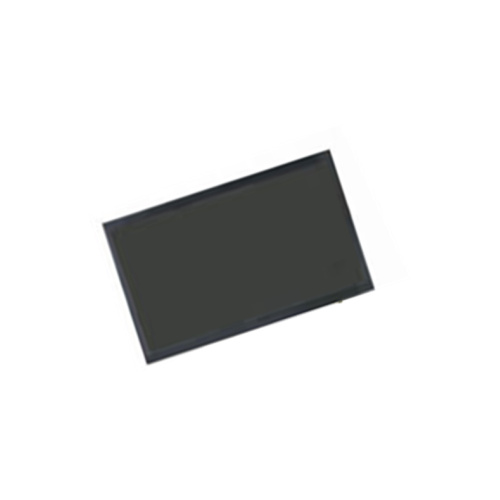

V236BJ1-LE2 Rev.P3
