R236HFE-L30 is a 23.6 inch diagonal a-Si TFT-LCD display screen product from Innolux, with a built-in WLED backlight, without backlight driver, without touch screen. This Innolux TFT-LCD is a 23.6 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Ver3.1 which was released out on 10 6 2014, R236HFE-L30 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 521.28(W)×293.22(H) mm, outline size of 544.8(W)×320.5(H)×13.5(D) mm, viewing area size of 525.22(W)×297.22(H) mm, with surface treament of Hard coating (3H), net weight of 2.00±0.10Kgs. As a AAS, Normally Black, Transmissive LCM product, R236HFE-L30 can provides 400 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 40K hours, external backlight driver is additionally needed. R236HFE-L30 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
Panel Model
R236HFE-L30
Panel Brand
Innolux
Panel Size
23.6"
Panel Type
a-Si TFT-LCD, LCM
Resolution
1920(RGB)×1080 , FHD
Pixel Format
RGB Vertical Stripe
Display Area
521.28(W)×293.22(H) mm
Bezel Opening
525.22(W)×297.22(H) mm
Outline Size
544.8(W)×320.5(H) ×13.5(D) mm
Surface
Hard coating (3H)
Brightness
400 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (TM)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Display Mode
AAS, Normally Black, Transmissive
Best View on
Symmetry
Response Time
30 (Typ.)(Tr+Td)
Display Colors
16.7M 72% NTSC
Lamp Type
WLED , 40K hours , Without Driver
Frequency
60Hz
Touch Screen
Without
Panel Weight
2.00±0.10Kgs
Signal Interface
LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage
5.0V (Typ.)
Environment
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

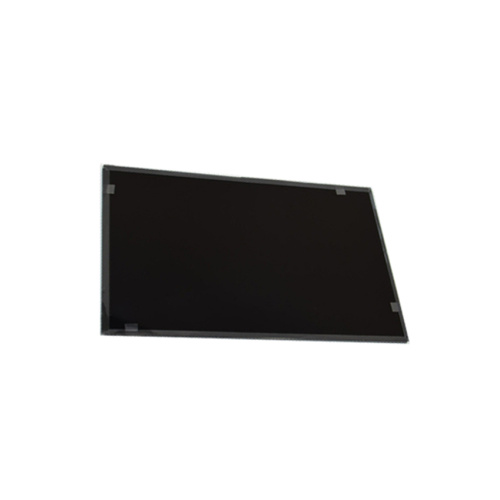

Product Picture:
