V236BJ1-LE2 Rev.C3 C5 Innolux 23.6 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Innolux Corporation (hereafter called Innolux) V236BJ1-LE2 Rev.C3 C5 is a 23.6 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This Innolux TFT-LCD is a 23.6 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Ver3.0 which was released out on 6 3 2014, V236BJ1-LE2 Rev.C3 C5 supports display 1366(RGB)×768 (WXGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 521.471(W)×293.184(H) mm, outline size of 544.8(W)×320.5(H)×11.8(D) mm, viewing area size of 525.22(W)×297.22(H) mm, with surface treament of Antiglare (Haze 1%), Hard coating (3H), net weight of 2.22/2.33Kgs (Typ./Max.). As a Super MVA, Normally Black, Transmissive LCM product, V236BJ1-LE2 Rev.C3 C5 can provides 250 cd/m² display brightness 3000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8.5 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Right side) and have a working life time of 30K hours, external backlight driver is additionally needed. V236BJ1-LE2 Rev.C3 C5 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 12.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
Model Name
V236BJ1-LE2 Rev.C3 C5
Manufacturer
Innolux
Screen Size
23.6 inch
Screen Type
LCM, a-Si TFT-LCD
Pixel Number
1366(RGB)×768 (WXGA)
Arrangement
RGB Vertical Stripe
Active Area(mm)
521.471 × 293.184 (H×V)
Outline(mm)
544.8 × 320.5 × 11.8 (H×V×D)
Bezel Area(mm)
525.22 × 297.22 (H×V)
Treatment
Antiglare (Haze 1%), Hard coating (3H)
Luminance
250 cd/m² (Typ.)
Contrast Ratio
3000 : 1 (Typ.) (TM)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Response
8.5 (Typ.)(G to G) ms
Good View at
Symmetry
Work Mode
Super MVA, Normally Black, Transmissive
Color Depth
16.7M 72% NTSC
Backlight
WLED , 30K hours , No Driver
Mass
2.22/2.33Kgs (Typ./Max.)
Refresh Rate
60Hz
Touchscreen
Without
Signal Type
LVDS (1 ch, 8-bit) , Connector 30 pins
Voltage Supply
12.0V (Typ.)
Max. Ratings
Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

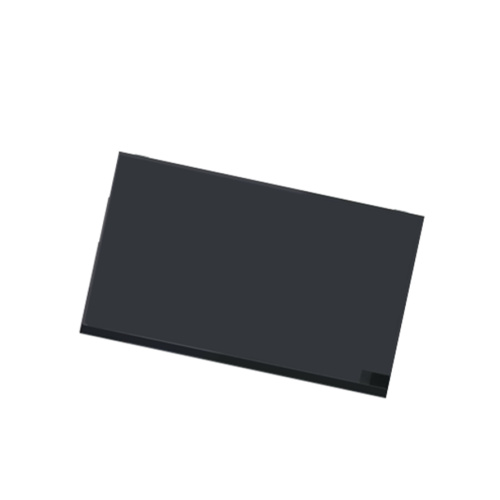

Product Picture:
