M236HGE-L20 Chimei Innolux 23.6 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
M236HGE-L20 is a 23.6 inch diagonal a-Si TFT-LCD display screen product from Chimei Innolux, with a built-in WLED backlight, without backlight driver, without touch screen. This Innolux TFT-LCD is a 23.6 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet C1_C2_Ver3.2 which was released out on 5 3 2012, M236HGE-L20 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 521.28(W)×293.22(H) mm, outline size of 544.8(W)×320.5(H) mm, viewing area size of 525.22(W)×297.22(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 2.31/2.41Kgs (Typ./Max.). As a TN, Normally White, Transmissive LCM product, M236HGE-L20 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 1.5/3.5 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 4 strings WLED as it's backlight systerm which was placed as Edge light type (Right side) and have a working life time of 40K hours, external backlight driver is additionally needed. M236HGE-L20 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
Panel Model
M236HGE-L20
Panel Brand
Chimei Innolux
Panel Size
23.6"
Resolution
1920(RGB)×1080 , FHD
Display Area
521.28(W)×293.22(H) mm
Outline Size
544.8(W)×320.5(H) mm
Brightness
300 cd/m² (Typ.)
Viewing Angle
85/85/80/80 (Typ.)(CR≥10)
Display Colors
16.7M 72% NTSC
Frequency
60Hz
Weight
2.31/2.41Kgs (Typ./Max.)
Panel Type
a-Si TFT-LCD , LCM
Pixel Format
RGB Vertical Stripe
Bezel Opening
525.22(W)×297.22(H) mm
Surface
Antiglare (Haze 25%), Hard coating (3H)
Contrast Ratio
1000:1 (Typ.) (TM)
Display Mode
TN, Normally White, Transmissive
Response Time
1.5/3.5 (Typ.)(Tr/Td)
Lamp Type
4 strings WLED , 40K hours , Without Driver
Touch Screen
Without
Signal Interface
LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage
5.0V (Typ.)
Environment
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

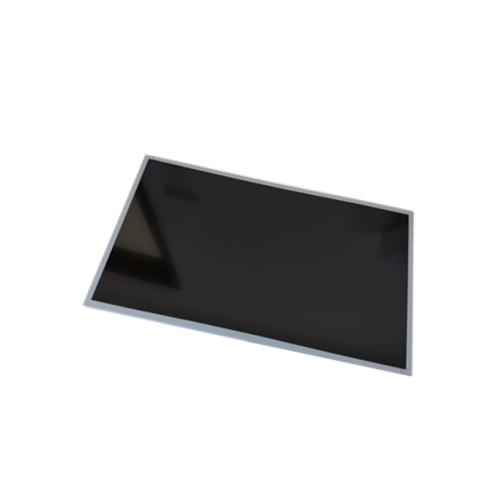

Product Picture:
