M200FGE-L20 Chimei Innolux 20.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
The M200FGE-L20 is a 20.0 inch diagonal a-Si TFT-LCD display panel product from Chimei Innolux Corporation (hereafter called Chimei Innolux), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , This Innolux TFT-LCD is a 20.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. M200FGE-L20 supports display 1600(RGB)×900 (HD+) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 442.8(W)×249.075(H) mm, outline size of 462.8(W)×272(H)×11(D) mm, viewing area size of 446.8(W)×253.2(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 1.63/1.80Kgs (Typ./Max.). As a TN, Normally White, Transmissive LCM product, M200FGE-L20 can provides 250 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 1.5/3.5 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 10S4P WLED as it's backlight systerm which was placed as Edge light type (Right side) and have a working life time of 50K hours, external backlight driver is additionally needed. M200FGE-L20 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
Panel Model
M200FGE-L20
Panel Brand
Chimei Innolux
Panel Size
20.0"
Panel Type
a-Si TFT-LCD, LCM
Resolution
1600(RGB)×900 , HD+
Pixel Format
RGB Vertical Stripe
Display Area
442.8(W)×249.075(H) mm
Bezel Opening
446.8(W)×253.2(H) mm
Outline Size
462.8(W)×272(H) ×11(D) mm
Surface
Antiglare (Haze 25%), Hard coating (3H)
Brightness
250 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (TM)
Viewing Angle
85/85/80/80 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
6 o'clock
Response Time
1.5/3.5 (Typ.)(Tr/Td)
Display Colors
16.7M 72% NTSC
Lamp Type
10S4P WLED , 50K hours , Without Driver
Frequency
60Hz
Touch Screen
Without
Panel Weight
1.63/1.80Kgs (Typ./Max.)
Signal Interface
LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage
5.0V (Typ.)
Environment
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

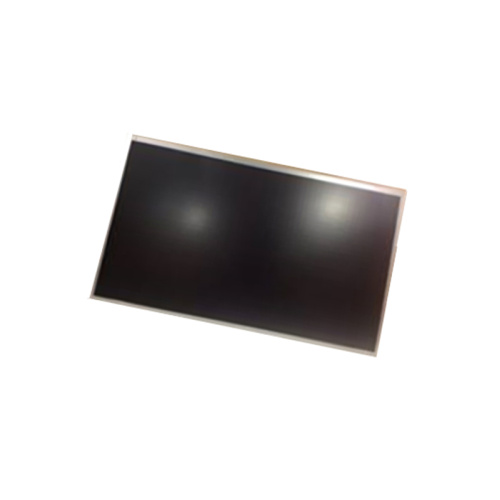

Product Picture:
