G185BGE-L01 Chimei Innolux 18.5 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Chimei Innolux Corporation (hereafter called Chimei Innolux) G185BGE-L01 is a 18.5 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. This Innolux TFT-LCD is a 18.5 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Ver2.0 which was released out on 11 5 2012, G185BGE-L01 supports display 1366(RGB)×768 (WXGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 409.8(W)×230.4(H) mm, outline size of 430.37(W)×254.6(H)×16.6(D) mm, viewing area size of 413.4(W)×234.0(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 1.58/1.65Kgs (Typ./Max.). As a TN, Normally White, Transmissive LCM product, G185BGE-L01 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 1.5/3.5 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 50K hours, With LED Driver. G185BGE-L01 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
Panel Model
G185BGE-L01
Panel Brand
Chimei Innolux
Panel Size
18.5"
Panel Type
a-Si TFT-LCD, LCM
Resolution
1366(RGB)×768 , WXGA
Pixel Format
RGB Vertical Stripe
Display Area
409.8(W)×230.4(H) mm
Bezel Opening
413.4(W)×234.0(H) mm
Outline Size
430.37(W)×254.6(H) ×16.6(D) mm
Surface
Antiglare (Haze 25%), Hard coating (3H)
Brightness
300 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (TM)
Viewing Angle
85/85/80/80 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Response Time
1.5/3.5 (Typ.)(Tr/Td)
Display Colors
16.7M 72% NTSC
Lamp Type
WLED , 50K hours , With LED Driver
Frequency
60Hz
Touch Screen
Without
Panel Weight
1.58/1.65Kgs (Typ./Max.)
Signal Interface
LVDS (1 ch, 8-bit) , 30 pins Connector
Input Voltage
5.0V (Typ.)
Environment
Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C

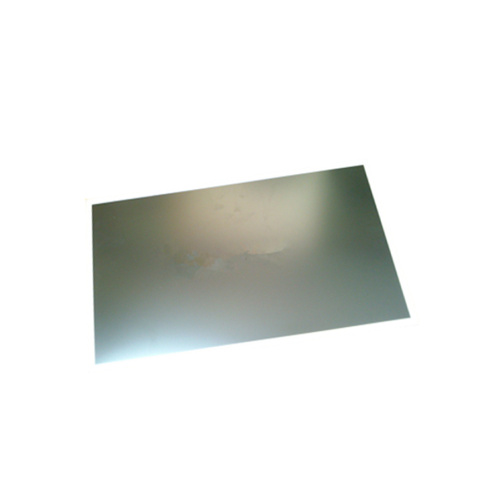

Product Picture:
