M185BGE-L23 Chimei Innolux 18.5 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
M185BGE-L23 is a 18.5 inch diagonal a-Si TFT-LCD display screen product from Chimei Innolux, with a built-in WLED backlight, without backlight driver, without touch screen. This Innolux TFT-LCD is a 18.5 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Ver3.2 which was released out on 5 9 2012, M185BGE-L23 supports display 1366(RGB)×768 (WXGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 409.8(W)×230.4(H) mm, outline size of 430.37(W)×254.6(H)×11(D) mm, viewing area size of 413.4(W)×234.0(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 1.45/1.50Kgs (Typ./Max.). As a TN, Normally White, Transmissive LCM product, M185BGE-L23 can provides 200 cd/m² display brightness 700:1 transimissive contrast ratio, 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 1.5/3.5 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 8S4P WLED as it's backlight systerm which was placed as Edge light type (Right side) and have a working life time of 40K hours, external backlight driver is additionally needed. M185BGE-L23 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
Model
M185BGE-L23
Brand
Chimei Innolux
Diagonal Size
18.5 inch
Type
a-Si TFT-LCD, LCM
Pixel Format
1366(RGB)×768 [WXGA]
Configuration
RGB Vertical Stripe
Active Area
409.8(H)×230.4(V) mm
Outline Dim.
430.37(H)×254.6(V) ×11(D) mm
Bezel Area
413.4(H)×234.0(V) mm
Treatment
Antiglare (Haze 25%), Hard coating (3H)
Luminance
200 cd/m² (Typ.)
Contrast Ratio
700:1 (Typ.) (TM)
View Direction
6 o'clock
Response Time
1.5/3.5 (Typ.)(Tr/Td)
Viewing Angle
45/45/20/45 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Support Color
16.7M 72% NTSC
Light Source
WLED [8S4P] , 40K hours , W/O Driver
Weight
1.45/1.50Kgs (Typ./Max.)
Frame Rate
60Hz
Touch Panel
Without
Interface Type
LVDS (1 ch, 8-bit) , 30 pins Connector
Power Supply
5.0V (Typ.)
Environment
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

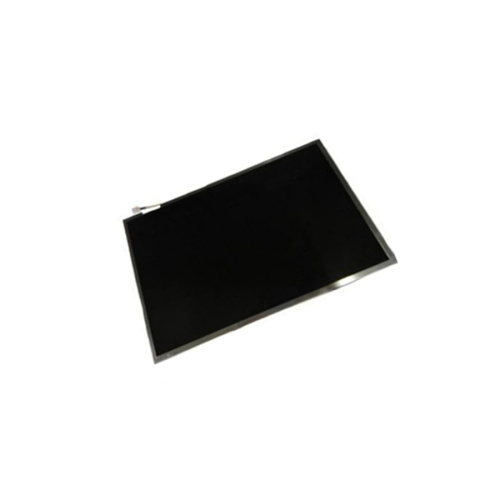

Product Picture:
