N140BGN-E42 Innolux 14.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
N140BGN-E42 (Product Code: CMN14B5) is a 14.0 inch diagonal a-Si TFT-LCD display screen product from Innolux, with a built-in WLED backlight, With LED Driver, touch screen On-Cell Touch. This Innolux TFT-LCD is a 14.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Rev.C1_Ver1.0 which was released out on 6 14 2016, N140BGN-E42 supports display 1366(RGB)×768 (WXGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 309.399(W)×173.952(H) mm, outline size of 320.4(W)×205.1(H)×3.2(D) mm, with surface treament of Glare (Haze 0%), Hard coating, net weight of 255/270g (Typ./Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a TN, Normally White, Transmissive LCM product, N140BGN-E42 can provides 220 cd/m² display brightness 600:1 transimissive contrast ratio, 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 3/7 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 45% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. N140BGN-E42 utilizes eDP (1 Lane) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
Panel Model
N140BGN-E42 (CMN14B5)
Panel Brand
Innolux
Panel Size
14.0"
Panel Type
a-Si TFT-LCD, LCM
Resolution
1366(RGB)×768 , WXGA
Pixel Format
RGB Vertical Stripe
Display Area
309.399(W)×173.952(H) mm
Outline Size
320.4(W)×205.1(H) ×3.2(D) mm
Surface
Glare (Haze 0%), Hard coating
Brightness
220 cd/m² (Typ.)
Contrast Ratio
600:1 (Typ.) (TM)
Viewing Angle
45/45/20/45 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
6 o'clock
Response Time
3/7 (Typ.)(Tr/Td)
Display Colors
262K 45% NTSC
Lamp Type
WLED , 15K hours , With LED Driver
Frequency
60Hz
Touch Screen
On-Cell Touch
Shape Style
Slim (PCBA Flat, T≤3.2mm)
Signal Interface
eDP (1 Lane) , 40 pins Connector
Input Voltage
3.3V (Typ.)
Environment
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

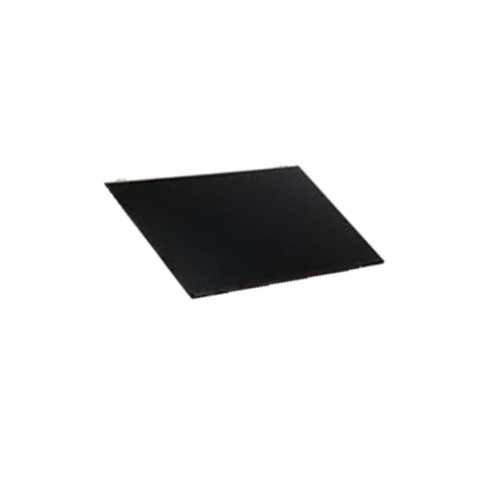

Product Picture:
