N133HCG-GF3 Innolux 13.3 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
N133HCG-GF3 (Product Code: CMN139D) is a 13.3 inch diagonal a-Si TFT-LCD display screen product from Innolux, with a built-in WLED backlight, With LED Driver, without touch screen. This Innolux TFT-LCD is a 13.3 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Rev.C1 Ver0.4 which was released out on 4 23 2019, N133HCG-GF3 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 293.76(W)×165.24(H) mm, outline size of 298.76(W)×176.24(H)×3.8(D) mm, with surface treament of Glare (Haze 0%), Hard coating, net weight of 161/170g (Typ./Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a AAS, Normally Black, Transmissive LCM product, N133HCG-GF3 can provides 400 cd/m² display brightness 1500:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 1 o'clock , and response time of 15/14 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. N133HCG-GF3 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
Model
N133HCG-GF3 (CMN139D)
Brand
Innolux
Diagonal Size
13.3 inch
Type
a-Si TFT-LCD, LCM
Pixel Format
1920(RGB)×1080 [FHD]
Configuration
RGB Vertical Stripe
Active Area
293.76(H)×165.24(V) mm
Outline Dim.
298.76(H)×176.24(V) ×3.8(D) mm
Treatment
Glare (Haze 0%), Hard coating
Luminance
400 cd/m² (Typ.)
Contrast Ratio
1500:1 (Typ.) (TM)
View Direction
1 o'clock
Response Time
15/14 (Typ.)(Tr/Td)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Operating Mode
AAS, Normally Black, Transmissive
Support Color
16.7M 100% sRGB
Light Source
WLED , 15K hours , With LED Driver
Form Style
Slim (PCBA Bent, T≤3.0mm)
Frame Rate
60Hz
Touch Panel
Without
Interface Type
eDP (2 Lanes) , 30 pins Connector
Power Supply
3.3V (Typ.)
Environment
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

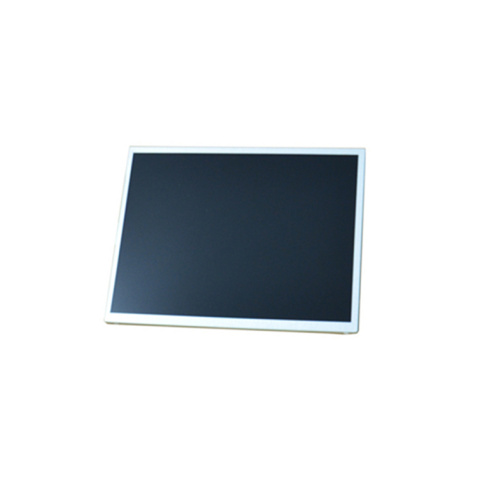

Product Picture:
