N133HCN-EA1 Innolux 13.3 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Innolux Corporation (hereafter called Innolux) N133HCN-EA1 (Alias: HP PN: L37861-J31) (Product Code: CMN1392) is a 13.3 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, touch screen On-Cell Touch. This Innolux TFT-LCD is a 13.3 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Rev.C1_Ver1.0 which was released out on 10 4 2018, N133HCN-EA1 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 293.76(W)×165.24(H) mm, outline size of 300.26(W)×187.27(H)×3(D) mm, viewing area size of 296.36(W)×167.84(H) mm, with surface treament of Antiglare, net weight of 247.2/268g (Typ./Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a AAS, Normally Black, Transmissive LCM product, N133HCN-EA1 can provides 250 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14/11 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 47% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. N133HCN-EA1 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
Panel Model
N133HCN-EA1 (CMN1392)
Panel Brand
Innolux
Panel Size
13.3"
Resolution
1920(RGB)×1080 , FHD
Display Area
293.76(W)×165.24(H) mm
Outline Size
300.26(W)×187.27(H) ×3(D) mm
Brightness
250 cd/m² (Typ.)
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Best View on
Symmetry
Display Colors
262K 47% NTSC
Frequency
60Hz
Shape Style
Slim (PCBA Flat, T≤3.2mm)
Panel Type
a-Si TFT-LCD , LCM
Pixel Format
RGB Vertical Stripe
Bezel Opening
296.36(W)×167.84(H) mm
Surface
Antiglare
Contrast Ratio
800:1 (Typ.) (TM)
Display Mode
AAS, Normally Black, Transmissive
Response Time
14/11 (Typ.)(Tr/Td)
Lamp Type
WLED , 15K hours , With LED Driver
Touch Screen
On-Cell Touch
Signal Interface
eDP (2 Lanes) , eDP1.2 , 40 pins Connector
Input Voltage
3.3V (Typ.)
Environment
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

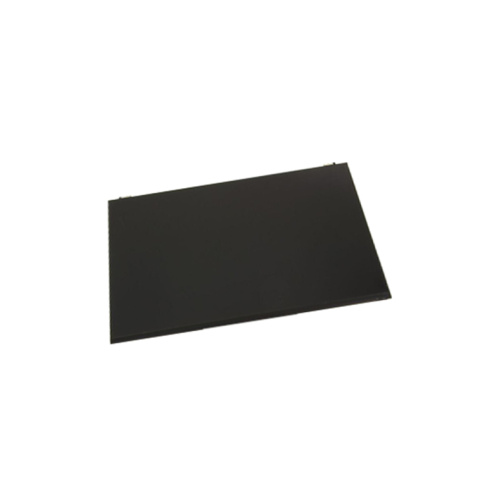

Product Picture:
