N133DCE-GP1 Innolux 13.3 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
N133DCE-GP1 is a 13.3 inch diagonal Oxide TFT-LCD display screen product from Innolux, with a built-in WLED backlight, With LED Driver, without touch screen. This Innolux TFT-LCD is a 13.3 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. N133DCE-GP1 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 332 PPI. As for mechanical detail, it features active area of 293.76(W)×165.24(H) mm. As a AAS, Normally Black, Transmissive LCM product, N133DCE-GP1 can provides 340 cd/m² display brightness 1500:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 15/14 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. N133DCE-GP1 utilizes eDP (4 Lanes) as it's signal inputting systerm Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
Model Name
N133DCE-GP1
Manufacturer
Innolux
Screen Size
13.3 inch
Screen Type
LCM , Oxide TFT-LCD
Pixel Number
3840(RGB)×2160 (UHD)
Arrangement
RGB Vertical Stripe
Active Area(mm)
293.76 × 165.24 (H×V)
Luminance
340 cd/m² (Typ.)
Contrast Ratio
1500 : 1 (Typ.) (TM)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Response
15/14 (Typ.)(Tr/Td) ms
Good View at
Symmetry
Work Mode
AAS, Normally Black, Transmissive
Color Depth
16.7M
Backlight
WLED , 15K hours , With LED Driver
Refresh Rate
60Hz
Touchscreen
Without
Signal Type
eDP (4 Lanes) Connector
Voltage Supply
3.3V (Typ.)
Max. Ratings
Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

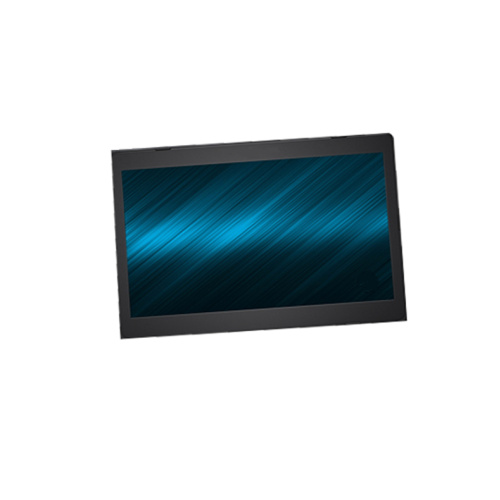

Product Picture:
