N133HCE-GN2 Innolux 13.3 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
N133HCE-GN2 (Product Code: CMN1379) is a 13.3 inch diagonal a-Si TFT-LCD display screen product from Innolux, with a built-in WLED backlight, With LED Driver, without touch screen. This Innolux TFT-LCD is a 13.3 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Rev.C1_Ver3.0 which was released out on 11 2 2017, N133HCE-GN2 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 293.76(W)×165.24(H) mm, outline size of 299.96(W)×186.92(H)×2.2(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 170g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a AAS, Normally Black, Transmissive LCM product, N133HCE-GN2 can provides 400 cd/m² display brightness 700:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14/11 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. N133HCE-GN2 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
Model Name
N133HCE-GN2 (CMN1379)
Manufacturer
Innolux
Screen Size
13.3 inch
Pixel Number
1920(RGB)×1080 (FHD)
Active Area(mm)
293.76 × 165.24 (H×V)
Luminance
400 (Typ.)(cd/m²)
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Good View at
Symmetry
Color Depth
16.7M 100% sRGB
Outline Shape
Slim (PCBA Flat, T≤3.2mm)
Refresh Rate
60Hz
Screen Type
LCM , a-Si TFT-LCD
Arrangement
RGB Vertical Stripe
Outline(mm)
299.96 × 186.92 × 2.2 (H×V×D)
Treatment
Antiglare, Hard coating (3H)
Contrast Ratio
700 : 1 (Typ.) (TM)
Work Mode
AAS, Normally Black, Transmissive
Response
14/11 (Typ.)(Tr/Td) ms
Backlight
WLED , 15K hours , With LED Driver
Touchscreen
Without
Signal Type
eDP (2 Lanes) , 30 pins Connector
Voltage Supply
3.3V (Typ.)
Max. Ratings
Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

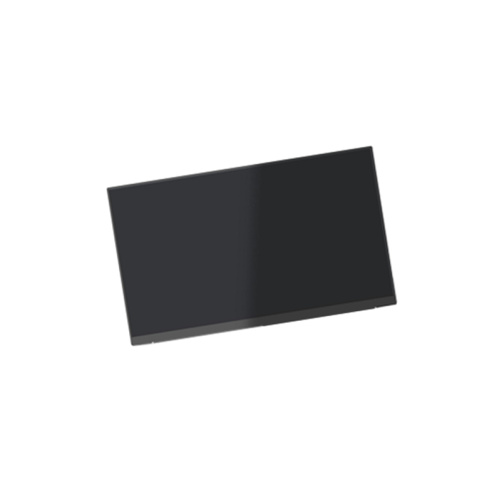

Product Picture:
