N133HCE-GP2 Innolux 13.3 inch TFT-LCD

N133HCE-GP2 is a 13.3" diagonal a-Si TFT-LCD display panel product from Innolux Corporation (hereafter called Innolux), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , This Innolux TFT-LCD is a 13.3 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. N133HCE-GP2 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 293.76(W)×165.24(H) mm, outline size of 299.96(W)×186.92(H)×2.2(D) mm, with surface treament of Glare (Haze 0%), Hard coating (3H), net weight of 170g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a AAS, Normally Black, Transmissive LCM product, N133HCE-GP2 can provides 300 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14/11 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. N133HCE-GP2 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input

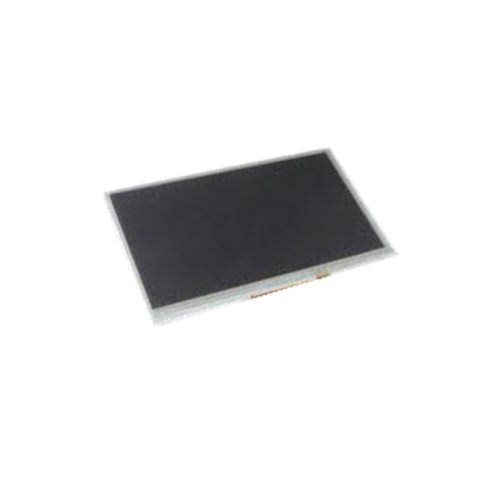

Product Picture:
