G101ICE-L02 Innolux 10.1 inch TFT-LCD

The G101ICE-L02 is a 10.1 inch diagonal a-Si TFT-LCD display panel product from Innolux Corporation (hereafter called Innolux), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -25 ~ 70°C. This Innolux TFT-LCD is a 10.1 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. G101ICE-L02 supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 216.96(W)×135.6(H) mm, outline size of 231(W)×153.5(H)×10.25(D) mm, viewing area size of 218.96(W)×137.6(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 345/350g (Typ./Max.). As a AAS, Normally Black, Transmissive LCM product, G101ICE-L02 can provides 500 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14/11 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 52% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. G101ICE-L02 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input

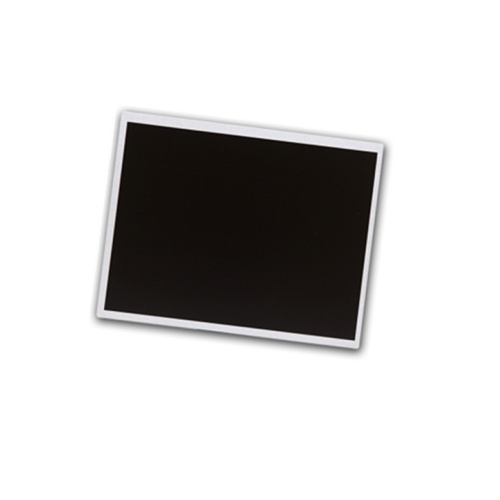

Product Picture:
