P101SFA-AF0 Innolux 10.1 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Innolux Corporation (hereafter called Innolux) P101SFA-AF0 is a 10.1 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen.This Innolux TFT-LCD is a 10.1 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Ver1.0 which was released out on 1 30 2015, P101SFA-AF0 supports display 1600(RGB)×2560 (WQXGA) with aspect ratio of 10:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 300 PPI. As for mechanical detail, it features active area of 135.36(W)×216.58(H) mm, outline size of 142.96(W)×228.037(H)×3.9(D) mm, with surface treament of Hard coating, net weight of 120g (Max.). As a AAS, Normally Black, Transmissive LCM product, P101SFA-AF0 can provides 400 cd/m² display brightness 1000:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 99% (sRGB). This product adopted 6S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, external backlight driver is additionally needed. P101SFA-AF0 utilizes MIPI (2 ch, 4 data lanes) as it's signal inputting systerm, which connected by 61 pins Connector with power supply voltage of 1.8/5.6/-5.6V (Typ.)(VDDI/VSP/VSN). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
|
Model |
P101SFA-AF0 |
|
Brand |
Innolux |
|
Diagonal Size |
10.1 inch |
|
Pixel Format |
1600(RGB)×2560 [WQXGA] |
|
Active Area |
135.36(H)×216.58(V) mm |
|
Luminance |
400 cd/m² (Typ.) |
|
View Direction |
Symmetry |
|
Viewing Angle |
80/80/80/80 (Typ.)(CR≥10) |
|
Support Color |
16.7M 99% sRGB |
|
Weight |
120g (Max.) |
|
Frame Rate |
60Hz |
|
Type |
a-Si TFT-LCD , LCM |
|
Configuration |
RGB Vertical Stripe |
|
Outline Dim. |
142.96(H)×228.037(V) ×3.9(D) mm |
|
Treatment |
Hard coating |
|
Contrast Ratio |
1000:1 (Typ.) (TM) |
|
Response Time |
25 (Typ.)(Tr+Td) |
|
Operating Mode |
AAS, Normally Black, Transmissive |
|
Light Source |
WLED [6S6P] , 15K hours , W/O Driver |
|
Touch Panel |
Without |
|
Interface Type |
MIPI (2 ch, 4 data lanes) 61 pins Connector |
|
Power Supply |
1.8/5.6/-5.6V (Typ.)(VDDI/VSP/VSN) |
|
Environment |
Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C |

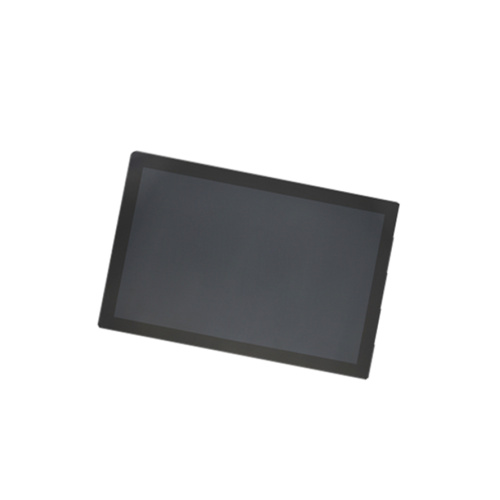

Product Picture:
