HD101IA-01U Innolux 10.1 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
HD101IA-01U is a 10.1 inch diagonal a-Si TFT-LCD display screen product from Innolux, with a built-in WLED backlight, With LED Driver, touch screen PCAP. This Innolux TFT-LCD is a 10.1 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Final Ver.01 which was released out on 3 10 2016, HD101IA-01U supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 216.96(W)×135.6(H) mm, outline size of 251.92(W)×186.03(H)×7.04(D) mm, viewing area size of 220.26(W)×138.9(H) mm, with surface treament of Antiglare, net weight of 345.34g. As a AAS, Normally Black, Transmissive Assembly product, HD101IA-01U can provides 340 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type, With LED Driver. HD101IA-01U utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
|
Model Name |
HD101IA-01U |
|
Manufacturer |
Innolux |
|
Screen Size |
10.1 inch |
|
Pixel Number |
1280(RGB)×800 (WXGA) |
|
Active Area(mm) |
216.96 × 135.6 (H×V) |
|
Bezel Area(mm) |
220.26 × 138.9 (H×V) |
|
Luminance |
340 (Typ.)(cd/m²) |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
|
Good View at |
Symmetry |
|
Color Depth |
16.7M 50% NTSC |
|
Mass |
345.34g |
|
Refresh Rate |
60Hz |
|
Screen Type |
Assembly , a-Si TFT-LCD |
|
Arrangement |
RGB Vertical Stripe |
|
Outline(mm) |
251.92 × 186.03 × 7.04 (H×V×D) |
|
Treatment |
Antiglare |
|
Contrast Ratio |
800 : 1 (Typ.) (TM) |
|
Response |
10/15 (Typ.)(Tr/Td) ms |
|
Backlight |
WLED , With LED Driver |
|
Touchscreen |
PCAP |
|
Signal Type |
LVDS (1 ch, 8-bit) , 40 pins Connector |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |

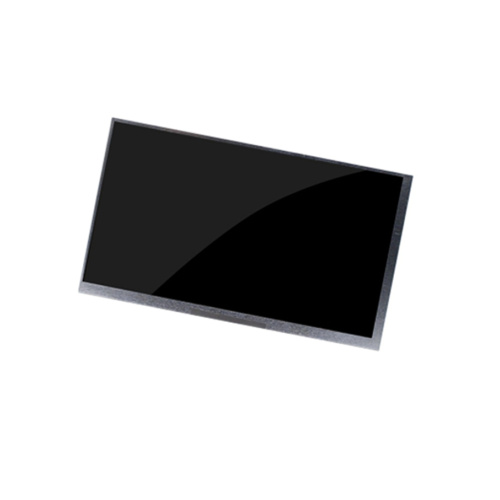

Product Picture:
