N101ICE-G63 Innolux 10.1 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,Shenzhen

Product Description

Innolux Corporation (hereafter called Innolux) N101ICE-G63 is a 10.1 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This Innolux TFT-LCD is a 10.1 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Ver0.0 which was released out on 12 27 2013, N101ICE-G63 supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 216.96(W)×135.6(H) mm, outline size of 228.6(W)×143(H)×4.3(D) mm, with surface treament of Glare (Haze 0%), Hard coating (3H), net weight of 130g (Max.). As a AAS, Normally Black, Transmissive LCM product, N101ICE-G63 can provides 350 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 60% (NTSC). This product adopted 6 strings WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 12K hours, external backlight driver is additionally needed. N101ICE-G63 utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 39 pins Connector with power supply voltage of 1.8/3.3V (Typ.)(VDDI/VCI). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input

Model	N101ICE-G63
Brand	Innolux
Diagonal Size	10.1 inch
Type	a-Si TFT-LCD, LCM
Pixel Format	1280(RGB)×800 [WXGA]
Configuration	RGB Vertical Stripe
Active Area	216.96(H)×135.6(V) mm
Outline Dim.	228.6(H)×143(V) ×4.3(D) mm
Treatment	Glare (Haze 0%), Hard coating (3H)
Luminance	350 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	10/15 (Typ.)(Tr/Td)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	AAS, Normally Black, Transmissive
Support Color	16.7M 60% NTSC
Light Source	WLED [6 strings] , 12K hours , W/O Driver
Weight	130g (Max.)
Frame Rate	60Hz
Touch Panel	Without
Interface Type	MIPI (4 data lanes) , 39 pins Connector
Power Supply	1.8/3.3V (Typ.)(VDDI/VCI)
Environment	Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C

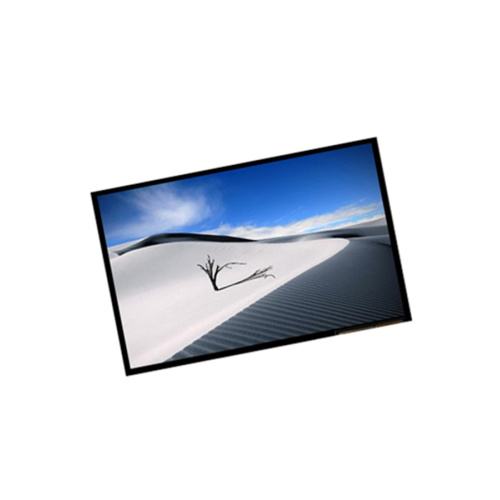

Product Picture:

N101ICE-G63
