P101LHA-AA2 Innolux 10.1 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Innolux Corporation (hereafter called Innolux) P101LHA-AA2 is a 10.1 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without touch screen. It features an operating temperature range of -10 ~ 50°C , a storage temperature range of -20 ~ 60°C .This Innolux TFT-LCD is a 10.1 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. P101LHA-AA2 supports display 1920(RGB)×1200 (WUXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 216.81(W)×135.5(H) mm, outline size of 227.72(W)×148.65(H) mm, with surface treament of Hard coating. As a AAS, Normally Black, Transmissive LCM product, P101LHA-AA2 can provides 350 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type. P101LHA-AA2 utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 40 pins Connector.
We are able to offer AD board for this display to support VGA video input
|
Model |
P101LHA-AA2 |
|
Brand |
Innolux |
|
Diagonal Size |
10.1 inch |
|
Pixel Format |
1920(RGB)×1200 [WUXGA] |
|
Active Area |
216.81(H)×135.5(V) mm |
|
Luminance |
350 cd/m² (Typ.) |
|
View Direction |
Symmetry |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
|
Support Color |
16.7M 50% NTSC |
|
Type |
a-Si TFT-LCD , LCM |
|
Configuration |
RGB Vertical Stripe |
|
Outline Dim. |
227.72(H)×148.65(V) mm |
|
Treatment |
Hard coating |
|
Contrast Ratio |
800:1 (Typ.) (TM) |
|
Response Time |
25 (Typ.)(Tr+Td) |
|
Operating Mode |
AAS, Normally Black, Transmissive |
|
Light Source |
WLED |
|
Touch Panel |
Without |
|
Interface Type |
MIPI (4 data lanes) 40 pins Connector |
|
Environment |
Operating Temperature: -10 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |

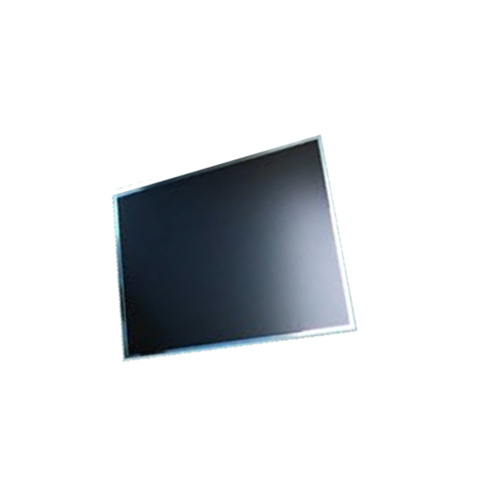

Product Picture:
