NJ101IA-01S Innolux 10.1 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,Shenzhen

Product Description

Innolux Corporation (hereafter called Innolux) NJ101IA-01S is a 10.1 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This Innolux TFT-LCD is a 10.1 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Ver.01 which was released out on 9 1 2015, NJ101IA-01S supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 216.96(W)×135.6(H) mm, outline size of 229.46(W)×149.1(H)×7.7(D) mm, viewing area size of 219.46(W)×138.1(H) mm, with surface treament of Hard coating, net weight of 292.7g (Typ.). As a IPS, Normally Black, Transmissive LCM product, NJ101IA-01S can provides 500 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. NJ101IA-01S utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 2.5/8.2/22.0/-7.0V (Typ.)(VDD/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input

Panel Model	NJ101IA-01S 1 Compatible
Panel Brand	Innolux
Panel Size	10.1"
Resolution	1280(RGB)×800 , WXGA
Display Area	216.96(W)×135.6(H) mm
Outline Size	229.46(W)×149.1(H) ×7.7(D) mm
Brightness	500 cd/m² (Typ.)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Best View on	Symmetry
Display Colors	16.7M 50% NTSC
Frequency	60Hz
Weight	292.7g (Typ.)
Panel Type	a-Si TFT-LCD , LCM
Pixel Format	RGB Vertical Stripe
Bezel Opening	219.46(W)×138.1(H) mm
Surface	Hard coating
Contrast Ratio	800:1 (Typ.) (TM)
Display Mode	IPS, Normally Black, Transmissive
Response Time	10/15 (Typ.)(Tr/Td)
Lamp Type	WLED , 20K hours , Without Driver
Touch Screen	Without
Signal Interface	LVDS (1 ch, 8-bit) , 40 pins Connector
Input Voltage	2.5/8.2/22.0/-7.0V (Typ.)(VDD/AVDD/VGH/VGL)
Environment	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

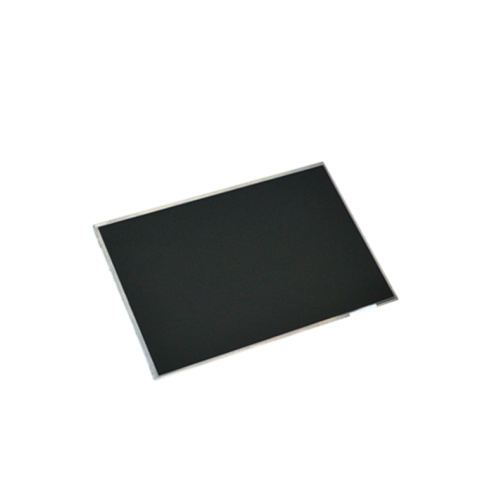

Product Picture:

NJ101IA-01S
