EJ090NA-03A Innolux 9.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
EJ090NA-03A is a 9.0 inch diagonal a-Si TFT-LCD display screen product from Innolux, with a built-in WLED backlight, With LED Driver, without touch screen. This Innolux TFT-LCD is a 9.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Final Ver.04 which was released out on 7 8 2014, EJ090NA-03A supports display 800(RGB)×480 (WVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 198(W)×111.696(H) mm, outline size of 211.1(W)×126.5(H) mm, viewing area size of 201(W)×114.7(H) mm, with surface treament of Antiglare, net weight of 0.26Kgs (Typ.). As a TN, Normally White, Transmissive LCM product, EJ090NA-03A can provides 300 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Dithering gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, With LED Driver. EJ090NA-03A utilizes Parallel RGB (1 ch, 8-bit) as it's signal inputting systerm, which connected by 50 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
|
Panel Model |
EJ090NA-03A |
|
Panel Brand |
Innolux |
|
Panel Size |
9.0" |
|
Resolution |
800(RGB)×480 , WVGA |
|
Display Area |
198(W)×111.696(H) mm |
|
Outline Size |
211.1(W)×126.5(H) mm |
|
Brightness |
300 cd/m² (Typ.) |
|
Viewing Angle |
70/70/50/70 (Typ.)(CR≥10) |
|
Display Colors |
16.7M 70% NTSC |
|
Frequency |
60Hz |
|
Weight |
0.26Kgs (Typ.) |
|
Panel Type |
a-Si TFT-LCD , LCM |
|
Pixel Format |
RGB Vertical Stripe |
|
Bezel Opening |
201(W)×114.7(H) mm |
|
Surface |
Antiglare |
|
Contrast Ratio |
500:1 (Typ.) (TM) |
|
Display Mode |
TN, Normally White, Transmissive |
|
Response Time |
10/15 (Typ.)(Tr/Td) |
|
Lamp Type |
WLED , 20K hours , With LED Driver |
|
Touch Screen |
Without |
|
Signal Interface |
Parallel RGB (1 ch, 8-bit) , 50 pins FPC |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |

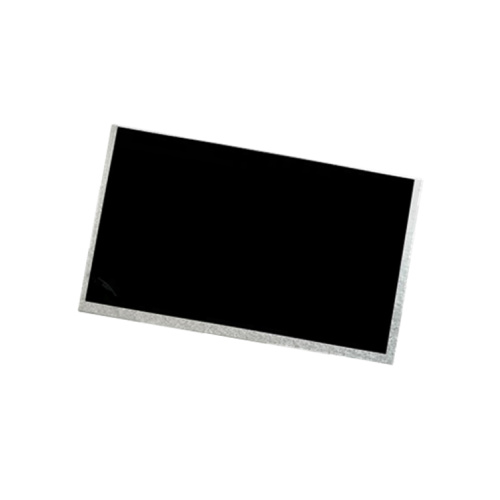

Product Picture:
