P070ACB-DB2 Innolux 7.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
P070ACB-DB2 is a 7.0 inch diagonal a-Si TFT-LCD display screen product from Innolux, with a built-in WLED backlight, without backlight driver, touch screen On-Cell Touch. This Innolux TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Rev.C1_Ver1.2 which was released out on 11 14 2014, P070ACB-DB2 supports display 600(RGB)×1024 (WSVGA) with aspect ratio of 10:17 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 89.28(W)×152.37(H) mm, outline size of 106.6(W)×192(H)×5.64(D) mm, with surface treament of Hard coating (9H), net weight of 117g (Max.). As a AAS, Normally Black, Transmissive Assembly product, P070ACB-DB2 can provides 350 cd/m² display brightness 800:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 6S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 12K hours, external backlight driver is additionally needed. P070ACB-DB2 utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 39 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
|
Model Name |
P070ACB-DB2 |
|
Manufacturer |
Innolux |
|
Screen Size |
7.0 inch |
|
Screen Type |
Assembly, a-Si TFT-LCD |
|
Pixel Number |
600(RGB)×1024 (WSVGA) |
|
Arrangement |
RGB Vertical Stripe |
|
Active Area(mm) |
89.28 × 152.37 (H×V) |
|
Outline(mm) |
106.6 × 192 × 5.64 (H×V×D) |
|
Treatment |
Hard coating (9H) |
|
Luminance |
350 cd/m² (Typ.) |
|
Contrast Ratio |
800 : 1 (Typ.) (TM) |
|
Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) |
|
Response |
25 (Typ.)(Tr+Td) ms |
|
Good View at |
Symmetry |
|
Work Mode |
AAS, Normally Black, Transmissive |
|
Color Depth |
16.7M 50% NTSC |
|
Backlight |
6S3P WLED , 12K hours , No Driver |
|
Mass |
117g (Max.) |
|
Refresh Rate |
60Hz |
|
Touchscreen |
On-Cell Touch |
|
Signal Type |
MIPI (4 data lanes) , Connector 39 pins |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Storage Temp.: -20 ~ 60 °C Operating Temp.: -10 ~ 50 °C |

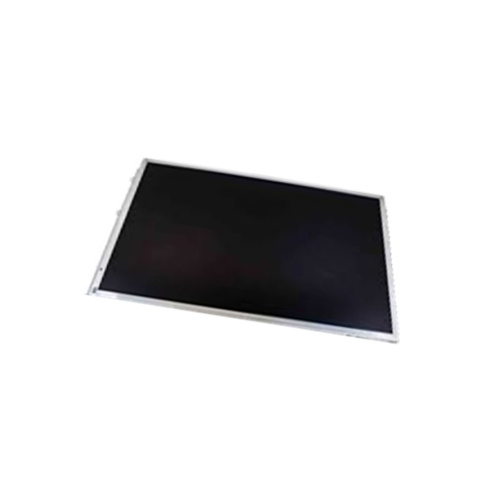

Product Picture:
