HJ070NA-01U Chimei Innolux 7.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Chimei Innolux Corporation (hereafter called Chimei Innolux) HJ070NA-01U is a 7.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without touch screen. This Innolux TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. HJ070NA-01U supports display 1024(RGB)×600 (WSVGA) with aspect ratio of 17:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 153.6(W)×90(H) mm, net weight of 92.8g (Typ.). As a TN, Normally White, Transmissive LCM product, HJ070NA-01U can provides 250 cd/m² display brightness 700:1 transimissive contrast ratio, 70/75/75/75 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours. HJ070NA-01U utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm FPC. It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
Model Name
HJ070NA-01U
Manufacturer
Chimei Innolux
Screen Size
7.0 inch
Screen Type
LCM, a-Si TFT-LCD
Pixel Number
1024(RGB)×600 (WSVGA)
Arrangement
RGB Vertical Stripe
Active Area(mm)
153.6 × 90 (H×V)
Luminance
250 cd/m² (Typ.)
Contrast Ratio
700 : 1 (Typ.) (TM)
Viewing Angle
70/75/75/75 (Typ.)(CR≥10)
Response
10/15 (Typ.)(Tr/Td) ms
Good View at
6 o'clock
Work Mode
TN, Normally White, Transmissive
Color Depth
262K/16.7M 70% NTSC
Backlight
WLED , 15K hours
Mass
92.8g (Typ.)
Refresh Rate
60Hz
Touchscreen
Without
Signal Type
LVDS (1 ch, 6/8-bit) , FPC
Max. Ratings
Storage Temp.: -20 ~ 60 °C Operating Temp.: -10 ~ 50 °C

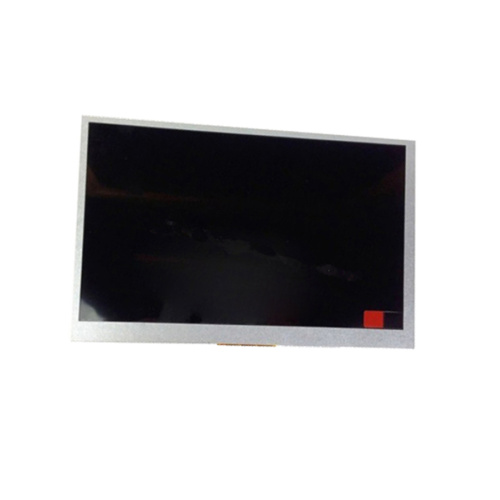

Product Picture:
