LW700AT9010 ChiHsin 7.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Chi Hsin Electronics Corp. (hereafter called ChiHsin) LW700AT9010 is a 7.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of Ver.08 which was released out on 1 11 2012, LW700AT9010 supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 165(W)×104.4(H)×5.7(D) mm, viewing area size of 155.3(W)×94.3(H) mm, with surface treament of Antiglare, net weight of 123g. As a TN, Normally White, Transmissive LCM product, LW700AT9010 can provides 250 cd/m² display brightness 400:1 transimissive contrast ratio, 70/70/60/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 72% (NTSC). This product adopted 3S8P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. LW700AT9010 utilizes TTL (1 ch, 6-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
Panel Model
LW700AT9010
Panel Brand
ChiHsin
Panel Size
7.0"
Panel Type
a-Si TFT-LCD, LCM
Resolution
800(RGB)×480 , WVGA
Pixel Format
RGB Vertical Stripe
Display Area
152.4(W)×91.44(H) mm
Bezel Opening
155.3(W)×94.3(H) mm
Outline Size
165(W)×104.4(H) ×5.7(D) mm
Surface
Antiglare
Brightness
250 cd/m² (Typ.)
Contrast Ratio
400:1 (Typ.) (TM)
Viewing Angle
70/70/60/60 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
6 o'clock
Response Time
10/15 (Typ.)(Tr/Td)
Display Colors
262K 72% NTSC
Lamp Type
3S8P WLED , 20K hours , Without Driver
Frequency
60Hz
Touch Screen
Without
Panel Weight
123g
Signal Interface
TTL (1 ch, 6-bit) , 40 pins FPC
Input Voltage
3.3V (Typ.)
Environment
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

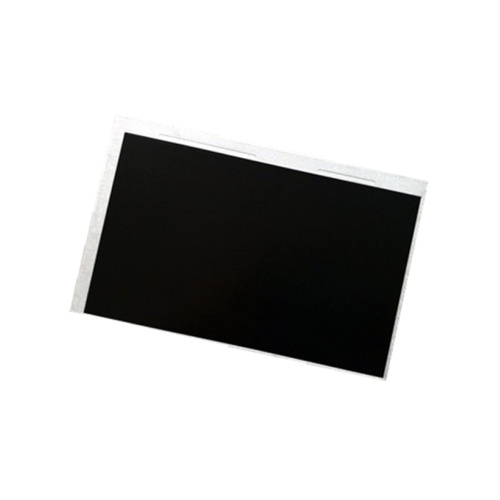

Product Picture:
