Q070LRE-L81 Chimei Innolux 7.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Chimei Innolux Corporation (hereafter called Chimei Innolux) Q070LRE-L81 is a 7.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This Innolux TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen.Based on datasheet with version of Final Ver03 which was released out on 7 12 2013, Q070LRE-L81 supports display 1024(RGB)×600 (WSVGA) with aspect ratio of 17:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 153.6(W)×90(H) mm, outline size of 167.25(W)×104.65(H) mm, viewing area size of 156.4(W)×92.8(H) mm, with surface treament of Glare (Haze 0%), net weight of 100g (Max.). As a TN, Normally White, Transmissive LCM product, Q070LRE-L81 can provides 350 cd/m² display brightness 700:1 transimissive contrast ratio, 75/75/75/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors. This product adopted 4S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. Q070LRE-L81 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 39 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
Panel Model
Q070LRE-L81 1 Compatible
Panel Brand
Chimei Innolux
Panel Size
7.0"
Panel Type
a-Si TFT-LCD, LCM
Resolution
1024(RGB)×600 , WSVGA
Pixel Format
RGB Vertical Stripe
Display Area
153.6(W)×90(H) mm
Bezel Opening
156.4(W)×92.8(H) mm
Outline Size
167.25(W)×104.65(H) mm
Surface
Glare (Haze 0%)
Brightness
350 cd/m² (Typ.)
Contrast Ratio
700:1 (Typ.) (TM)
Viewing Angle
75/75/75/70 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
12 o'clock
Response Time
10/15 (Typ.)(Tr/Td)
Display Colors
262K/16.7M
Lamp Type
4S6P WLED , 20K hours , Without Driver
Frequency
60Hz
Touch Screen
Without
Panel Weight
100g (Max.)
Signal Interface
LVDS (1 ch, 6/8-bit) , 39 pins FPC
Input Voltage
3.3V (Typ.)
Environment
Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C

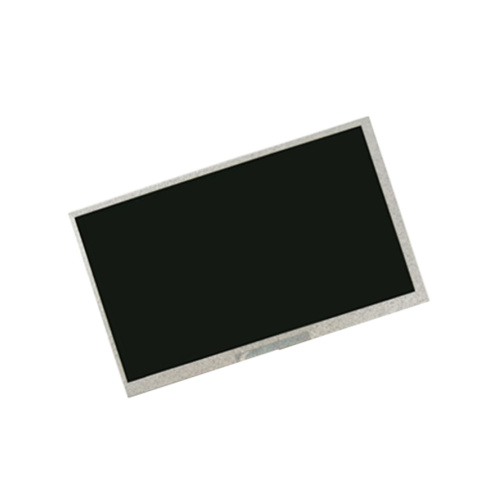

Product Picture:
