G070Y2-L01 Innolux 7.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
The G070Y2-L01 is a 7.0 inch diagonal a-Si TFT-LCD display panel product from Innolux Corporation (hereafter called Innolux), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -40 ~ 95°C. This Innolux TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. G070Y2-L01 supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 165(W)×104(H)×9.83(D) mm, viewing area size of 154.6(W)×93.64(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 147/162g (Typ./Max.). As a TN, Normally White, Transmissive LCM product, G070Y2-L01 can provides 500 cd/m² display brightness 600:1 transimissive contrast ratio, 70/70/60/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 5/11 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 50K hours, With LED Driver. G070Y2-L01 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
Panel Model
G070Y2-L01
Panel Brand
Innolux
Panel Size
7.0"
Panel Type
a-Si TFT-LCD, LCM
Resolution
800(RGB)×480 , WVGA
Pixel Format
RGB Vertical Stripe
Display Area
152.4(W)×91.44(H) mm
Bezel Opening
154.6(W)×93.64(H) mm
Outline Size
165(W)×104(H) ×9.83(D) mm
Surface
Antiglare, Hard coating (3H)
Brightness
500 cd/m² (Typ.)
Contrast Ratio
600:1 (Typ.) (TM)
Viewing Angle
70/70/60/60 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Response Time
5/11 (Typ.)(Tr/Td)
Display Colors
262K/16.2M 72% NTSC
Lamp Type
WLED , 50K hours , With LED Driver
Frequency
60Hz
Touch Screen
Without
Panel Weight
147/162g (Typ./Max.)
Signal Interface
LVDS (1 ch, 6/8-bit) , 20 pins Connector
Input Voltage
3.3V (Typ.)
Environment
Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C ; Vibration Level: 3.0G (29.4 m/s²)

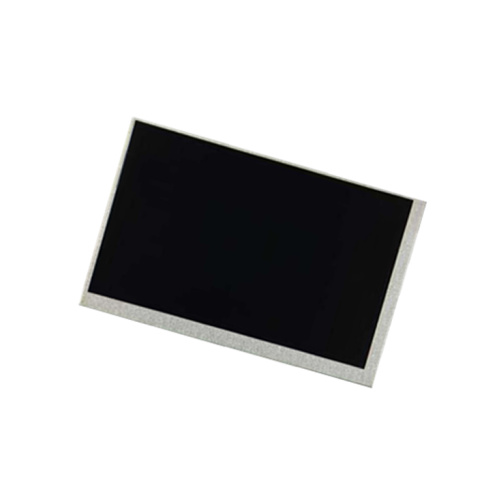

Product Picture:
