AT070TN83 V.1 Innolux 7.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Innolux Corporation (hereafter called Innolux) AT070TN83 V.1 (Alias: AT070TN83 V1) is a 7.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . This Innolux TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. AT070TN83 V.1 supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 165(W)×104(H)×5.8(D) mm, viewing area size of 155.3(W)×94.3(H) mm, with surface treament of Antiglare, net weight of 130g (Typ.). As a TN, Normally White, Transmissive LCM product, AT070TN83 V.1 can provides 300 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, With LED Driver. AT070TN83 V.1 utilizes TTL (1 ch, 6-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.)(VCC). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
Panel Model
AT070TN83 V.1 1 Compatible
Panel Brand
Innolux
Panel Size
7.0"
Resolution
800(RGB)×480 , WVGA
Display Area
152.4(W)×91.44(H) mm
Outline Size
165(W)×104(H) ×5.8(D) mm
Brightness
300 cd/m² (Typ.)
Viewing Angle
70/70/50/70 (Typ.)(CR≥10)
Best View on
6 o'clock
Display Colors
262K
Frequency
60Hz
Weight
130g (Typ.)
Panel Type
a-Si TFT-LCD , LCM
Pixel Format
RGB Vertical Stripe
Bezel Opening
155.3(W)×94.3(H) mm
Surface
Antiglare
Contrast Ratio
500:1 (Typ.) (TM)
Display Mode
TN, Normally White, Transmissive
Response Time
10/15 (Typ.)(Tr/Td)
Lamp Type
WLED , 20K hours , With LED Driver
Touch Screen
Without
Signal Interface
TTL (1 ch, 6-bit) , 40 pins Connector
Input Voltage
3.3V (Typ.)(VCC)
Environment
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

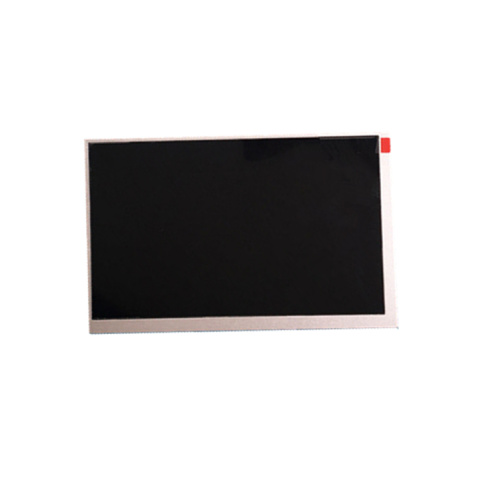

Product Picture:
