P068HFB-DK1 Innolux 6.8 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
P068HFB-DK1 is a 6.8 inch diagonal a-Si TFT-LCD display screen product from Innolux, with a built-in WLED backlight, without backlight driver, touch screen PCAP. This Innolux TFT-LCD is a 6.8 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Ver1.1 which was released out on 8 12 2016, P068HFB-DK1 supports display 1080(RGB)×1920 (FHD) with aspect ratio of 9:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 325 PPI. As for mechanical detail, it features active area of 84.24(W)×149.76(H) mm, outline size of 92.35(W)×182.35(H)×4.87(D) mm, with surface treament of Hard coating, net weight of 88.6±3.0g. As a IPS, Normally Black, Transmissive Assembly product, P068HFB-DK1 can provides 350 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted 6S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 12K hours, external backlight driver is additionally needed. P068HFB-DK1 utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 39 pins Connector. It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
Panel Model
P068HFB-DK1
Panel Brand
Innolux
Panel Size
6.8"
Panel Type
a-Si TFT-LCD, Assembly
Resolution
1080(RGB)×1920 , FHD
Pixel Format
RGB Vertical Stripe
Display Area
84.24(W)×149.76(H) mm
Outline Size
92.35(W)×182.35(H) ×4.87(D) mm
Surface
Hard coating
Brightness
350 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (TM)
Viewing Angle
85/85/85/85 (Min.)(CR≥10)
Display Mode
IPS, Normally Black, Transmissive
Best View on
Symmetry
Response Time
25 (Typ.)(Tr+Td)
Display Colors
16.7M 70% NTSC
Lamp Type
6S3P WLED , 12K hours , Without Driver
Frequency
60Hz
Touch Screen
PCAP
Panel Weight
88.6±3.0g
Signal Interface
MIPI (4 data lanes) , 39 pins Connector
Environment
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

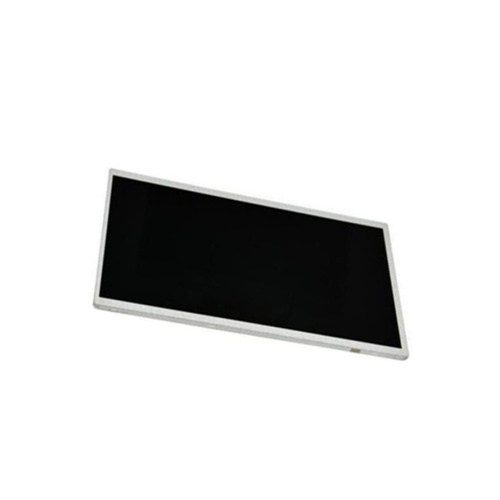

Product Picture:
