SJ056NA-01A Chimei Innolux 5.6 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
The SJ056NA-01A is a 5.6 inch diagonal a-Si TFT-LCD display panel product from Chimei Innolux Corporation (hereafter called Chimei Innolux), with an integral WLED backlight system, With LED Driver , touch screen 4-wire Resistive Touch. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . This Innolux TFT-LCD is a 5.6 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. SJ056NA-01A supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 112.896(W)×84.672(H) mm, outline size of 169(W)×103(H)×11.6(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 188g (Typ.). As a TN, Normally White, Transmissive LCM product, SJ056NA-01A can provides 280 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. SJ056NA-01A utilizes Parallel RGB (1 ch, 8-bit) + SPI as it's signal inputting systerm, which connected by 70 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
|
Panel Model |
SJ056NA-01A |
|
Panel Brand |
Chimei Innolux |
|
Panel Size |
5.6" |
|
Resolution |
640(RGB)×480 , VGA |
|
Display Area |
112.896(W)×84.672(H) mm |
|
Outline Size |
169(W)×103(H) ×11.6(D) mm |
|
Brightness |
280 cd/m² (Typ.) |
|
Viewing Angle |
70/70/50/70 (Typ.)(CR≥10) |
|
Best View on |
6 o'clock |
|
Display Colors |
16.7M |
|
Frequency |
60Hz |
|
Weight |
188g (Typ.) |
|
Panel Type |
a-Si TFT-LCD , LCM |
|
Pixel Format |
RGB Vertical Stripe |
|
Surface |
Antiglare, Hard coating (3H) |
|
Contrast Ratio |
500:1 (Typ.) (TM) |
|
Display Mode |
TN, Normally White, Transmissive |
|
Response Time |
10/15 (Typ.)(Tr/Td) |
|
Lamp Type |
WLED , 50K hours , With LED Driver |
|
Touch Screen |
4-wire Resistive Touch |
|
Signal Interface |
Parallel RGB (1 ch, 8-bit) + SPI , 70 pins FPC |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |

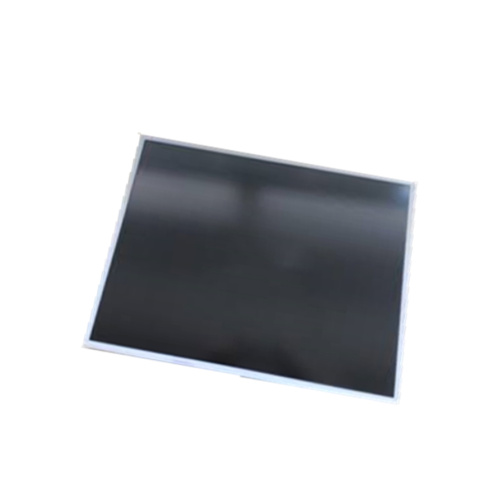

Product Picture:
