AT056TN52 V.3 Chimei Innolux 5.6 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Chimei Innolux Corporation (hereafter called Chimei Innolux) AT056TN52 V.3 is a 5.6 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . This Innolux TFT-LCD is a 5.6 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. AT056TN52 V.3 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 112.896(W)×84.672(H) mm, outline size of 126.5(W)×100(H)×6(D) mm, viewing area size of 115.70(W)×87.47(H) mm, with surface treament of Antiglare, net weight of 127.5g (Typ.). As a TN, Normally White, Transmissive LCM product, AT056TN52 V.3 can provides 200 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted 3S5P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. AT056TN52 V.3 utilizes Parallel RGB (1 ch, 8-bit) as it's signal inputting systerm, which connected by 50 pins FPC with power supply voltage of 3.3/5.0/15/-10V (Typ.)(VCC/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
|
Model Name |
AT056TN52 V.3 |
|
Manufacturer |
Chimei Innolux |
|
Screen Size |
5.6 inch |
|
Screen Type |
LCM, a-Si TFT-LCD |
|
Pixel Number |
640(RGB)×480 (VGA) |
|
Arrangement |
RGB Vertical Stripe |
|
Active Area(mm) |
112.896 × 84.672 (H×V) |
|
Outline(mm) |
126.5 × 100 × 6 (H×V×D) |
|
Bezel Area(mm) |
115.70 × 87.47 (H×V) |
|
Treatment |
Antiglare |
|
Luminance |
200 cd/m² (Typ.) |
|
Contrast Ratio |
500 : 1 (Typ.) (TM) |
|
Viewing Angle |
70/70/50/70 (Typ.)(CR≥10) |
|
Response |
10/15 (Typ.)(Tr/Td) ms |
|
Good View at |
6 o'clock |
|
Work Mode |
TN, Normally White, Transmissive |
|
Color Depth |
16.7M |
|
Backlight |
3S5P WLED , 20K hours , No Driver |
|
Mass |
127.5g (Typ.) |
|
Refresh Rate |
60Hz |
|
Touchscreen |
Without |
|
Signal Type |
Parallel RGB (1 ch, 8-bit) , FPC 50 pins |
|
Voltage Supply |
3.3/5.0/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
|
Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |

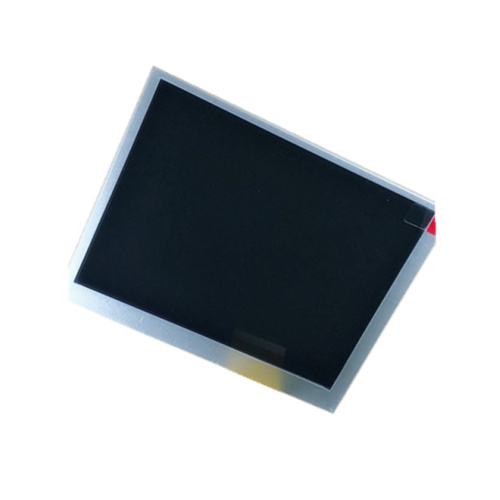

Product Picture:
