PJ055IC-02M Innolux 5.5 inch TFT-LCD
  • PJ055IC-02M Innolux 5.5 inch TFT-LCD
PJ055IC-02M Innolux 5.5 inch TFT-LCD

PJ055IC-02M Innolux 5.5 inch TFT-LCD

Payment Type:
T/T, Paypal, Western Union
Incoterm:
FOB, EXW
Min. Order:
1 Piece/Pieces
Min. Order:
1 Piece/Pieces
Delivery Time:
3 Days
Transportation:
Ocean, Land, Air
Port:
HK, Shenzhen
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: TAIWAN
Payment Type: T/T,Paypal,Western Union
Incoterm: FOB,EXW
Certificate: CE,ROHS,ISO9001
Transportation: Ocean,Land,Air
Port: HK,Shenzhen
Product Description
Product Description


PJ055IC-02M (Alias: ZR550ML) is a 5.5" diagonal LTPS TFT-LCD display panel product from Innolux Corporation (hereafter called Innolux), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C .This Innolux TFT-LCD is a 5.5 inch with Consumer Lcd Display, it have LCD Controller and Tft Color ScreenPJ055IC-02M supports display 1080(RGB)×1920 (FHD) with aspect ratio of 9:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 403 PPI. As for mechanical detail, it features active area of 68.04(W)×120.96(H) mm, outline size of 70.44(W)×128.86(H) mm, net weight of TBD. As a AAS, Normally Black, Transmissive LCM product, PJ055IC-02M can provides 500 cd/m² display brightness 1000:1 transimissive contrast  89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, bratio,est view direction on Symmetry , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted 6S2P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. PJ055IC-02M utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 27 pins FPC with power supply voltage of 1.8/2.8V (Typ.)(IOVCC/VCC). It's typical vertical frame rate (Fv) is 60Hz.


We are able to offer AD board for this display to support VGA video input


Model

PJ055IC-02M

Brand

Innolux

Diagonal Size

5.5 inch

Type

LTPS TFT-LCD, LCM

Pixel Format

1080(RGB)×1920   [FHD]

Configuration

RGB Vertical Stripe

Active Area

68.04(H)×120.96(V) mm

Outline Dim.

70.44(H)×128.86(V) mm

Luminance

500 cd/m² (Typ.)

Contrast Ratio

1000:1 (Typ.) (TM)

View Direction

Symmetry

Response Time

20 (Typ.)(Tr+Td)

Viewing Angle

89/89/89/89 (Typ.)(CR≥10)

Operating Mode

AAS, Normally Black, Transmissive

Support Color

16.7M   70% NTSC

Light Source

WLED  [6S2P] , W/O Driver

Weight

TBD

Frame Rate

60Hz

Touch Panel

Without

Interface Type

  MIPI (4 data lanes) , 27 pins FPC

Power Supply

1.8/2.8V (Typ.)(IOVCC/VCC)

Environment

Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

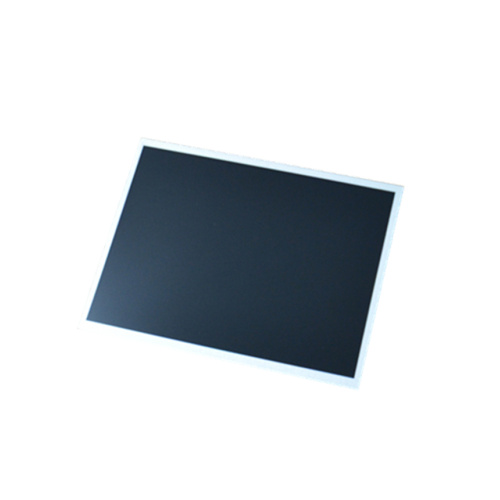

Product Picture:

PJ055IC-02M
