FJ050IC-01B Chimei Innolux 5.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Chimei Innolux Corporation (hereafter called Chimei Innolux) FJ050IC-01B is a 5.0 inch diagonal LTPS TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. The Innolux TFT-LCD is a 5.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Ver1.0 which was released out on 6 1 2012, FJ050IC-01B supports display 720(RGB)×1280 (WXGA) with aspect ratio of 9:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 294 PPI. As for mechanical detail, it features active area of 62.1(W)×110.4(H) mm, outline size of 66.7(W)×120.3(H)×2.8(D) mm, net weight of TBD. As a AAS, Normally Black, Transmissive LCM product, FJ050IC-01B can provides 350 cd/m² display brightness 900:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted 5S2P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. FJ050IC-01B utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 1.8/2.8V (Typ.)(VDD/VCI). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
|
Panel Model |
FJ050IC-01B |
|
Panel Brand |
Chimei Innolux |
|
Panel Size |
5.0" |
|
Panel Type |
LTPS TFT-LCD, LCM |
|
Resolution |
720(RGB)×1280 , WXGA |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
62.1(W)×110.4(H) mm |
|
Outline Size |
66.7(W)×120.3(H) ×2.8(D) mm |
|
Brightness |
350 cd/m² (Typ.) |
|
Contrast Ratio |
900:1 (Typ.) (TM) |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
|
Display Mode |
AAS, Normally Black, Transmissive |
|
Best View on |
Symmetry |
|
Response Time |
25 (Typ.)(Tr+Td) |
|
Display Colors |
16.7M 70% NTSC |
|
Lamp Type |
5S2P WLED , Without Driver |
|
Frequency |
60Hz |
|
Touch Screen |
Without |
|
Panel Weight |
TBD |
|
Signal Interface |
MIPI (4 data lanes) , 30 pins Connector |
|
Input Voltage |
1.8/2.8V (Typ.)(VDD/VCI) |
|
Environment |
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |

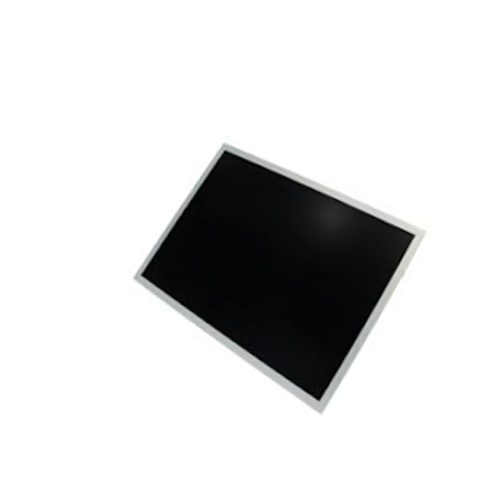

Product Picture:
