ZJ043NA-01M Innolux 4.3 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
ZJ043NA-01M is a 4.3" diagonal a-Si TFT-LCD display panel product from Innolux Corporation (hereafter called Innolux), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -10 ~ 70°C , a storage temperature range of -30 ~ 80°C . Innolux TFT-LCD is a 4.3 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen.ZJ043NA-01M supports display 480(RGB)×272 (WQVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 95.04(W)×53.856(H) mm, outline size of 105.5(W)×67.2(H) mm, with surface treament of Antiglare, net weight of 43.3g (Typ.). As a TN, Normally White, Transmissive LCM product, ZJ043NA-01M can provides 400 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 8S1P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. ZJ043NA-01M utilizes CMOS/TTL (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3V (Typ.).
We are able to offer AD board for this display to support VGA video input
|
Model Name |
ZJ043NA-01M |
|
Manufacturer |
Innolux |
|
Screen Size |
4.3 inch |
|
Pixel Number |
480(RGB)×272 (WQVGA) |
|
Active Area(mm) |
95.04 × 53.856 (H×V) |
|
Luminance |
400 (Typ.)(cd/m²) |
|
Viewing Angle |
70/70/50/70 (Typ.)(CR≥10) |
|
Color Depth |
16.7M 50% NTSC |
|
Mass |
43.3g (Typ.) |
|
Screen Type |
LCM , a-Si TFT-LCD |
|
Arrangement |
RGB Vertical Stripe |
|
Outline(mm) |
105.5 × 67.2 (H×V×D) |
|
Treatment |
Antiglare |
|
Contrast Ratio |
500 : 1 (Typ.) (TM) |
|
Work Mode |
TN, Normally White, Transmissive |
|
Response |
10/15 (Typ.)(Tr/Td) ms |
|
Backlight |
8S1P WLED , No Driver |
|
Touchscreen |
Without |
|
Signal Type |
CMOS/TTL (1 ch, 8-bit) , 40 pins FPC |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -10 ~ 70 °C |

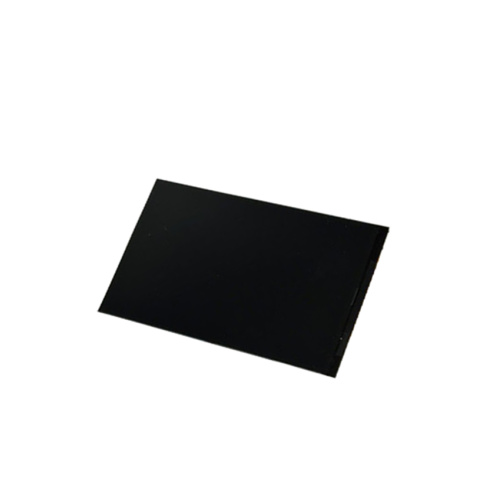

Product Picture:
