PJ035IA-02P Innolux 3.5 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
PJ035IA-02P is a 3.5 inch diagonal a-Si TFT-LCD display screen product from Innolux, with a built-in WLED backlight, without backlight driver, without touch screen. Innolux TFT-LCD is a 3.5 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Rev1.2 which was released out on 8 14 2014, PJ035IA-02P supports display 320(RGB)×480 (HVGA) with aspect ratio of 2:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 48.96(W)×73.44(H) mm, outline size of 53.1(W)×82.9(H)×1.85(D) mm. As a AAS, Normally Black, Transmissive LCM product, PJ035IA-02P can provides 300 cd/m² display brightness 700:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 71% (NTSC). This product adopted 5S1P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. PJ035IA-02P utilizes MIPI (1 data lane) as it's signal inputting systerm, which connected by 24 pins Connector with power supply voltage of 1.8/2.8V (Typ.)(IOVCC/VCI). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
|
Model Name |
PJ035IA-02P |
|
Manufacturer |
Innolux |
|
Screen Size |
3.5 inch |
|
Screen Type |
LCM, a-Si TFT-LCD |
|
Pixel Number |
320(RGB)×480 (HVGA) |
|
Arrangement |
RGB Vertical Stripe |
|
Active Area(mm) |
48.96 × 73.44 (H×V) |
|
Outline(mm) |
53.1 × 82.9 × 1.85 (H×V×D) |
|
Luminance |
300 cd/m² (Typ.) |
|
Contrast Ratio |
700 : 1 (Typ.) (TM) |
|
Viewing Angle |
80/80/80/80 (Min.)(CR≥10) |
|
Response |
30 (Typ.)(Tr+Td) ms |
|
Good View at |
Symmetry |
|
Work Mode |
AAS, Normally Black, Transmissive |
|
Color Depth |
262K 71% NTSC |
|
Backlight |
5S1P WLED , No Driver |
|
Refresh Rate |
60Hz |
|
Touchscreen |
Without |
|
Signal Type |
MIPI (1 data lane) , Connector 24 pins |
|
Voltage Supply |
1.8/2.8V (Typ.)(IOVCC/VCI) |
|
Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |

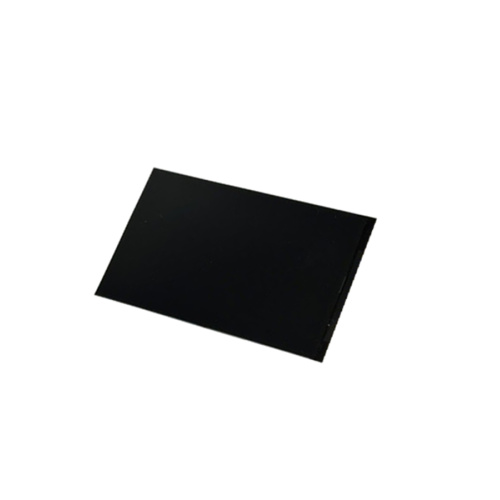

Product Picture:
