ZJ043NA-01M Innolux 4.3 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,Shenzhen

Product Description

ZJ043NA-01M is a 4.3" diagonal a-Si TFT-LCD display panel product from Innolux Corporation (hereafter called Innolux), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -10 ~ 70°C , a storage temperature range of -30 ~ 80°C . This Innolux TFT-LCD is a 4.3 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen.ZJ043NA-01M supports display 480(RGB)×272 (WQVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 95.04(W)×53.856(H) mm, outline size of 105.5(W)×67.2(H) mm, with surface treament of Antiglare, net weight of 43.3g (Typ.). As a TN, Normally White, Transmissive LCM product, ZJ043NA-01M can provides 400 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 8S1P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. ZJ043NA-01M utilizes CMOS/TTL (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3V (Typ.).

We are able to offer AD board for this display to support VGA video input.

Panel Model	ZJ043NA-01M
Panel Brand	Innolux
Panel Size	4.3"
Panel Type	a-Si TFT-LCD, LCM
Resolution	480(RGB)×272 , WQVGA
Pixel Format	RGB Vertical Stripe
Display Area	95.04(W)×53.856(H) mm
Outline Size	105.5(W)×67.2(H) mm
Surface	Antiglare
Brightness	400 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)
Viewing Angle	70/70/50/70 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	-
Response Time	10/15 (Typ.)(Tr/Td)
Display Colors	16.7M 50% NTSC
Lamp Type	8S1P WLED , Without Driver
Touch Screen	Without
Panel Weight	43.3g (Typ.)
Signal Interface	CMOS/TTL (1 ch, 8-bit) , 40 pins FPC
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -10 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

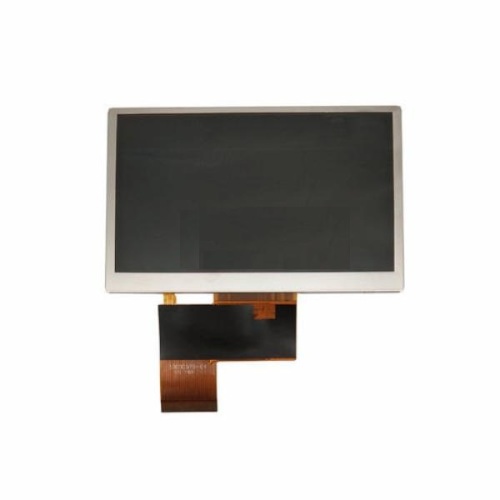

Product Picture:

ZJ043NA-01M
