Innolux 10.4 inch TFT-LCD G104X1-L04
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
G104X1-L04 is a 10.4 inch diagonal a-Si TFT-LCD display screen product from Innolux, with a built-in WLED backlight, With LED Driver, without touch screen. This Innolux TFT-LCD is a 10.4 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Ver2.9 which was released out on 9 23 2016, G104X1-L04 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 210.4(W)×157.8(H) mm, outline size of 225.5(W)×176.3(H)×9.2(D) mm, viewing area size of 215.4(W)×161.8(H) mm, with surface treament of Antiglare, net weight of 430±50g. As a Super MVA, Normally Black, Transmissive LCM product, G104X1-L04 can provides 500 cd/m² display brightness 1000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14/11 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 55% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. G104X1-L04 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
Model Name
G104X1-L04
Panel Brand
Innolux
Screen Size
10.4 inch
Screen Type
LCM ,
a-Si TFT-LCD
Pixel Number
1024(RGB)×768
(XGA)
Arrangement
RGB Vertical
Stripe
Active Area(mm)
210.4 × 157.8
(H×V)
Outline(mm)
225.5 × 176.3 ×
9.2 (H×V×D)
Bezel Area(mm)
215.4 × 161.8
(H×V)
Treatment
Antiglare
Luminance
500 cd/m² (Typ.)
Contrast Ratio
1000 : 1 (Typ.)
(TM)
Viewing Angle
88/88/88/88
(Typ.)(CR≥10)
Response
14/11
(Typ.)(Tr/Td) ms
Good View at
Symmetry
Work Mode
Super MVA,
Normally Black, Transmissive
Color Depth
262K/16.2M
55% NTSC
Backlight
WLED , 50K hours
, With LED Driver
Mass
430±50g
Refresh Rate
60Hz
Touchscreen
Without
Signal Type
LVDS (1 ch,
6/8-bit) , Connector , 30 pins
Voltage Supply
3.3V (Typ.)
Max. Ratings
Storage Temp.:
-30 ~ 80 °C Operating Temp.: -30 ~ 80 °C

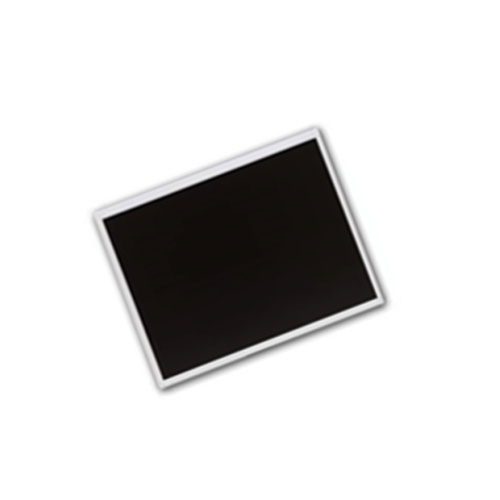

Product Picture:
