Innolux 10.4 inch 800×600 LVDS TFT-LCD Panel G104S1-L01

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,Shenzhen

Product Description

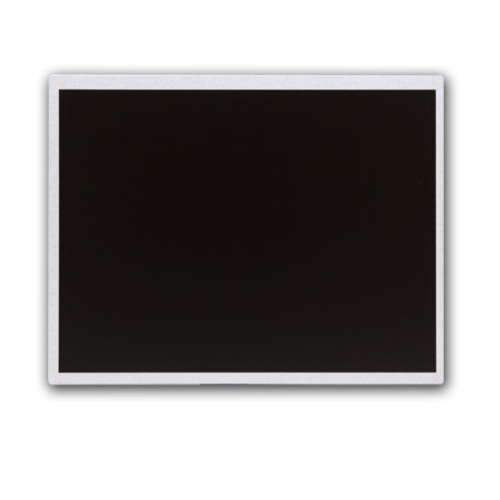

Chimei Innolux Corporation (hereafter called Chimei Innolux) G104S1-L01 is a 10.4 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. This Innolux TFT-LCD is a 10.4 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Ver2.3 which was released out on 5 16 2016, G104S1-L01 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 243(W)×184(H)×7.3(D) mm, viewing area size of 214.8(W)×162.7(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 355g (Typ.). As a TN, Normally White, Transmissive LCM product, G104S1-L01 can provides 400 cd/m² display brightness 700:1 transimissive contrast ratio, 80/80/70/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 5/11 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 53% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, With LED Driver. G104S1-L01 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Panel Model	G104S1-L01
Panel Brand	Chimei Innolux
Panel Size	10.4"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×600 , SVGA
Pixel Format	RGB Vertical Stripe
Display Area	211.2(W)×158.4(H) mm
Bezel Opening	214.8(W)×162.7(H) mm
Outline Size	243(W)×184(H) ×7.3(D) mm
Surface	Antiglare, Hard coating (3H)
Brightness	400 cd/m² (Typ.)
Contrast Ratio	700:1 (Typ.) (TM)
Viewing Angle	80/80/70/70 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Response Time	5/11 (Typ.)(Tr/Td)
Display Colors	262K/16.2M 53% NTSC
Lamp Type	WLED , 30K hours , With LED Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	355g (Typ.)
Signal Interface	LVDS (1 ch, 6/8-bit) , 20 pins , Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -40 ~ 80 °C
