Innolux 10.4 inch 640×480 TFT-LCD G104V1-T03

Innolux Corporation (hereafter called Innolux) G104V1-T03 is a 10.4 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. This Innolux TFT-LCD is a 10.4 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Ver2.3 which was released out on 4 10 2013, G104V1-T03 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 225.5(W)×176.3(H)×9.34(D) mm, viewing area size of 215.4(W)×161.8(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 395±50g. As a Super MVA, Normally Black, Transmissive LCM product, G104V1-T03 can provides 500 cd/m² display brightness 1500:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14/9 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 55% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 50K hours, With LED Driver. G104V1-T03 utilizes CMOS/TTL (1 ch, 6-bit) as it's signal inputting systerm, which connected by 31 pins Connector with power supply voltage of 3.3/5.0V (Typ.)(VCC). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

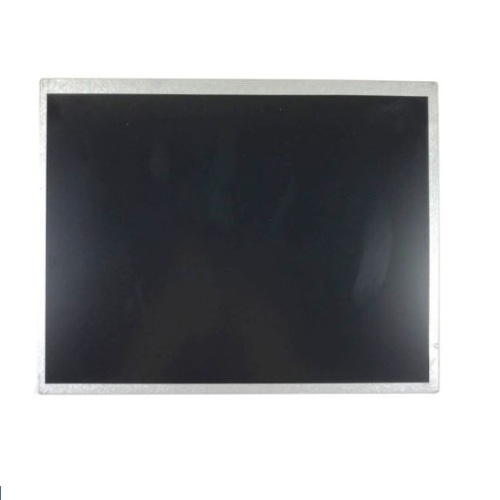

Product Picture:
