HDMI VGA and DVI input for LVDS LCD
Your message must be between 20 to 2000 characters
Contact NowTY070M6M-HDMI is a high-performance and high stability of industrial LCD driver board.It can input 2 channel CVBS.1chnnel VGA.1 channel DVI.1channel HDMI signal; 1channel CVBS output , 2 channel Audio input and output . with PAL and NTSC system format (auto switch) . it`s menu can be adjusted by pushbutton . OSD display . the product is mainly used for video door phone or other display electronic equipments.It supports LVDS interface it can drive single, dual-channel LVDS interface LCD ,the maximum resolution it support is 1920X1080. such as G065VN01 V2,G070VW01 V0,G084SN05 V9,G104STN01.0,G104XVN01.0,G121SN01 V4,G121XN01 V0,G121XTN01 0,G150XVN01.1 etc
Main parameter
Item
Description
Supported LCD display
6.5 inch- 24 inch LVDS TFT-LCD
Driver board dimension
102(W)×70(H)×15.78(D) mm
Working voltage(Power supply
<=0.3VP-P)
Min:DC9V;S:DC12V;Max:DC15V;
Working current(DC 12V power
supply)
DC430mA±30mA
Interface
HDMI/DVI/VGA/CVBS input
Start time
≤5s(Boot screen)≤10s(into the channel screen)
Operation temperature
-20℃~70℃
- DC 12V input
- Support one HDMI,one VGA,one DVI,two CVBS signal input
- Support single, dual-channel 8-bit or6-bitLVDS LCD
- Automatic dual-channel signal detection.
- Stable .
- Using anti-high temperature electronic components.
- With overcurrent and overvoltage protection.
- With ESD protection.
- ROHS
- Supported resolution 640X480(VGA),800X480(WVGA),800*600(SVGA), 1024*768(XGA), 1280*1024(SXGA), 1360*768(WXGA), 1440*900 (WXGA+),1680*1050(WSXGA+),1920*1080(WSUVGA+)

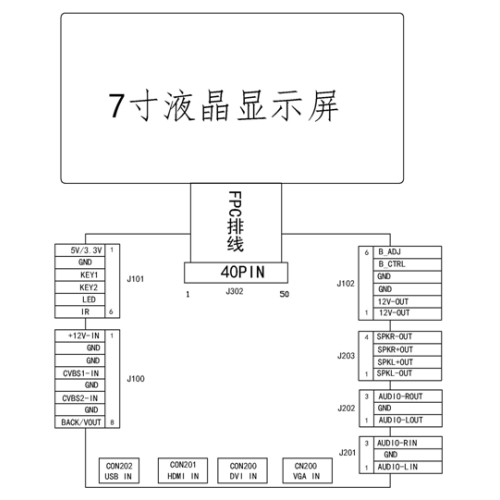

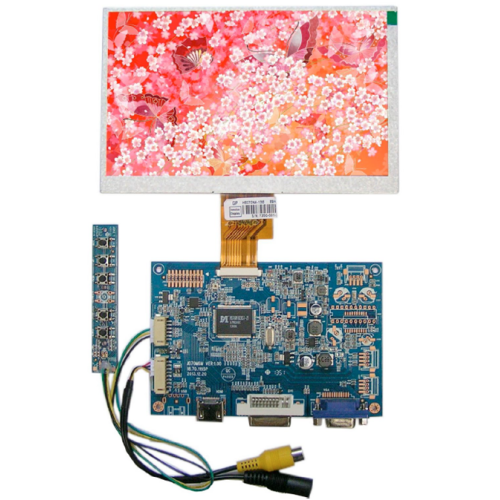

Board Picture

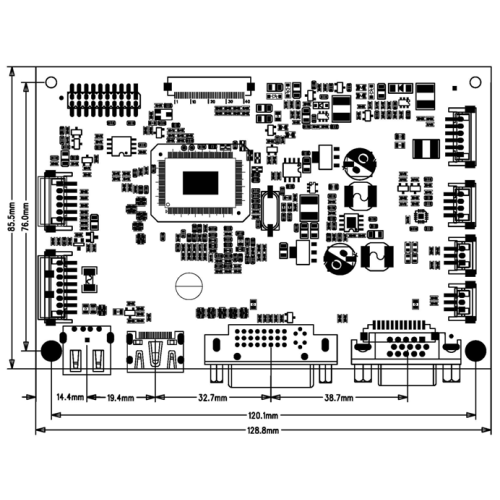

Board Dimension
