Product Description

Ampire Co., Ltd. (hereafter called AMPIRE) AM-1024768MTMQW-01H is a 10.4 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. This Ampire TFT-LCD is a 10.4 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of 20130515 which was released out on 5 15 2013, AM-1024768MTMQW-01H supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 236(W)×174.3(H)×7.7(D) mm, viewing area size of 213.2(W)×160.4(H) mm, with surface treament of Antiglare, net weight of 385g (Typ.). As a TN, Normally White, Transmissive LCM product, AM-1024768MTMQW-01H can provides 500 cd/m² display brightness, 75/75/60/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 25 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 47% (NTSC). This product adopted 3S13P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, With LED Driver. AM-1024768MTMQW-01H utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Model	AM-1024768MTMQW-01H
Brand	AMPIRE
Diagonal Size	10.4 inch
Type	a-Si TFT-LCD, LCM
Pixel Format	1024(RGB)×768 [XGA] 123PPI
Configuration	RGB Vertical Stripe
Active Area	211.2(H)×158.4(V) mm
Outline Dim.	236(H)×174.3(V) ×7.7(D) mm
Bezel Area	213.2(H)×160.4(V) mm
Treatment	Antiglare
Luminance	500 cd/m² (Typ.)
Response Time	25 (Typ.)(Tr/Td)
Viewing Angle	75/75/60/80 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K 47% NTSC
Light Source	WLED [3S13P] , 20K hours , With LED Driver
Weight	385g (Typ.)
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (1 ch, 6-bit) , 30 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

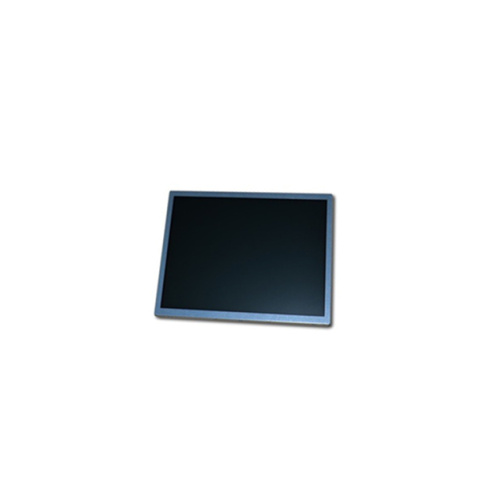

Product Picture:

AM-1024768MTMQW-01H
