AM-19201200FTZQW-T05 AMPIRE 10.1 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Ampire Co., Ltd. (hereafter called AMPIRE) AM-19201200FTZQW-T05 is a 10.1 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, touch screen PCAP. This Ampire TFT-LCD is a 10.1 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of 20190408 which was released out on 4 8 2019, AM-19201200FTZQW-T05 supports display 1920(RGB)×1200 (WUXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 216.806(W)×135.504(H) mm, outline size of 227.72(W)×146.13(H)×7.2(D) mm. As a AHVA, Normally Black, Transmissive LCM product, AM-19201200FTZQW-T05 can provides 320 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, With LED Driver. AM-19201200FTZQW-T05 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
AM-19201200FTZQW-T05 |
|
Panel Brand |
AMPIRE |
|
Panel Size |
10.1" |
|
Resolution |
1920(RGB)×1200, WUXGA, 224PPI |
|
Display Area |
216.806(W)×135.504(H) mm |
|
Outline Size |
227.72(W)×146.13(H) ×7.2(D) mm |
|
Brightness |
320 cd/m² (Typ.) |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
|
Best View on |
Symmetry |
|
Display Colors |
16.7M 50% NTSC |
|
Frequency |
60Hz |
|
Panel Type |
a-Si TFT-LCD , LCM |
|
Pixel Format |
RGB Vertical Stripe |
|
Contrast Ratio |
800:1 (Typ.) (TM) |
|
Display Mode |
AHVA, Normally Black, Transmissive |
|
Response Time |
25 (Typ.)(Tr+Td) |
|
Lamp Type |
WLED , 30K hours , With LED Driver |
|
Touch Screen |
PCAP |
|
Signal Interface |
eDP (2 Lanes) , 30 pins Connector |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C |

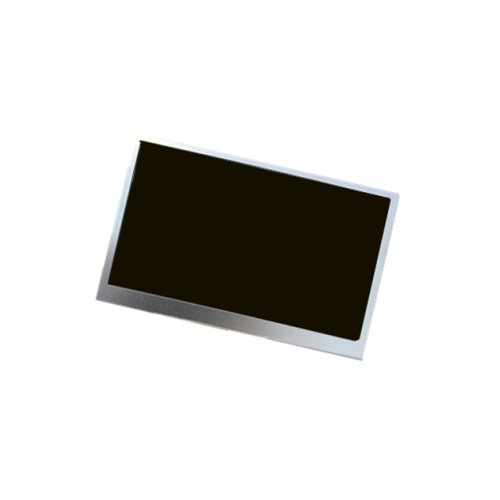

Product Picture:
